Valve Stem Seal question.

79 Wagoneer, 401.
I believe I have leaking Valve Stem Seal on #8 Cylinder.
If the Head has Positive seals, which I read require some machining of the stem, can I switch to Umbrella type? Once I have the old seals out I will post a photo. Blue smoke and badly fouled plug on #8 ( Passenger side rear)
Good compression across all cylinders. 150Psi cold engine, 8 cranks, all plugs removed.
Reply With Quote
  #2
Old 07-23-2021, 06:39 AM
wiley-moeracing wiley-moeracing is offline
350 Buick

Join Date: Feb 15, 2010
Location: arizona
Posts: 1,381
sure, but why?
Reply With Quote
  #3
Old 07-24-2021, 06:04 AM
stonybrookpictures's Avatar
stonybrookpictures stonybrookpictures is offline
232 I6

Join Date: Nov 30, 2020
Location: ri
Posts: 26
Turns out I have umbrella style

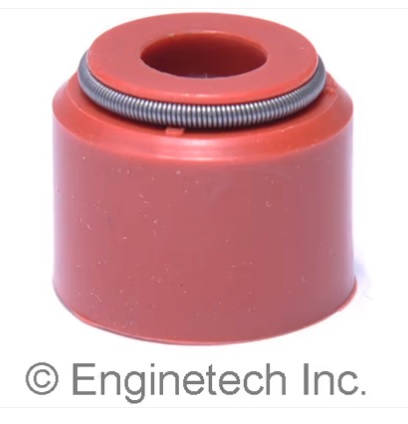

They look like Enginetech Premium. The spring at the top threw me off
Reply With Quote
  #4
Old 07-24-2021, 07:03 AM
wiley-moeracing wiley-moeracing is offline
350 Buick

Join Date: Feb 15, 2010
Location: arizona
Posts: 1,381
replace with the same.
Reply With Quote
  #5
Old 07-25-2021, 06:45 AM
stonybrookpictures's Avatar
stonybrookpictures stonybrookpictures is offline
232 I6

Join Date: Nov 30, 2020
Location: ri
Posts: 26
Hard to find.
Quote:
Originally Posted by wiley-moeracing
replace with the same.
Reply With Quote
  #6
Old 07-25-2021, 07:23 AM
stonybrookpictures's Avatar
stonybrookpictures stonybrookpictures is offline
232 I6

Join Date: Nov 30, 2020
Location: ri
Posts: 26
Enginetech Part #

Catalog says Part# S288-20 ( 20 pack )
Cant seem tp find a source on-line
Reply With Quote
  #7
Old 07-25-2021, 11:02 AM
wiley-moeracing wiley-moeracing is offline
350 Buick

Join Date: Feb 15, 2010
Location: arizona
Posts: 1,381
Everything is hard to find right now, check your local engine machine shop and or napa.
Reply With Quote
  #8
Old 07-25-2021, 12:07 PM
stonybrookpictures's Avatar
stonybrookpictures stonybrookpictures is offline
232 I6

Join Date: Nov 30, 2020
Location: ri
Posts: 26
BINGO

https://proenginerebuilders.com/
Reply With Quote
  #9
Old 07-25-2021, 12:09 PM
rang-a-stang's Avatar
rang-a-stang rang-a-stang is offline
Administrator

Join Date: Oct 31, 2016
Location: Camarillo, CA
Posts: 4,315
The positive seals are MUCH better and last A lot longer. Also, when they fail, they do not send big chunks of rubber through your engine.

Search for Viton seals and you will find sets all over ebay and other sites for less than $50. Ask any local machine shop and they should have them on the shelf too.
__________________
79 Cherokee Chief (passed CA smog check Sept 2020)
(Cherokee Build Thread)
11 Nissan Pathfinder Silver Edition 4x4
09 Mazdaspeed3 Grand Touring
Reply With Quote
  #10
Old 07-26-2021, 12:12 PM
letank's Avatar
letank letank is offline
AMC 4 OH! 1

Join Date: Jun 03, 2002
Location: San Francisco
Posts: 4,014
here we go:

http://www.ifsja.org/forums/vb/showthread.php?t=187035

the short version

Enginetech S2886 look like what the engine builder used on my engine.
Regardless, that's what I bought to replace the damaged one. Seems fine.

https://www.rockauto.com/en/moreinfo...27&jsn=7&jsn=7


last time (checked : it was 2013) I went to the local part outlet... and it was the white felpro


__________________
Michel
74 wag, 349Kmiles on original ticker/trany, except for the rust. Will it make it to the next get together without a rebuilt? Status: needs a new body.
85 Gwag, 226 Kmiles. $250 FSJ test lab since 02, that refuses to give up but still leaks.

See Ouray 2013, Engine bits and Fuel and brake lines, and Body work

Last edited by letank : 07-26-2021 at 12:31 PM.
Reply With Quote
  #11
Old 08-07-2021, 01:37 AM
FSJunkie's Avatar
FSJunkie FSJunkie is offline
The Nigel Tufnel of the FSJ world.

Join Date: Jan 09, 2011
Location: Not The Hot Part, Arizona
Posts: 4,038
A leaking exhaust valve stem seal won't foul the spark plug. It'll smoke out the exhaust, but that's because the oil is burning in the hot exhaust. It's not actually burning in the cylinder.

Only the intake valve stem seal will burn oil in the cylinder.
__________________
'72 Jeep Wagoneer Custom, 360 V8

I love how arguements end as soon as Ristow comments. Ristow is right...again.
Reply With Quote
  #12
Old 08-07-2021, 08:11 AM
Curly5759's Avatar
Curly5759 Curly5759 is offline
232 I6

Join Date: Mar 08, 2015
Location: Verde Valley, Arizona
Posts: 214
This may be a bit late, but a bad vacuum modulator can cause the spark plug to foul. Quick and easy to fix.
__________________
77 Cherokee S 360/TH400/QT
Reply With Quote
