Lightbulb MTNWAG. 86GW

Hello! Poster here a few times in the past. have received great info and hope too in the future.

Last winter I took my bone stock wagoneer and added a SOA/shackle flip, custom bumpers, custom roof rack and EFI. Drove it around the ranch a little bit, playing with the tuning and working bugs out. Then got my hands on a drivetrain from a 93 cummins. And that's when the wheels started turning!

Plan
2inch body
6bt, 5 speed, 60/70s (turbo,IP upgrades,injectors, springs. Shooting for 300+ hp, 8-9 ft lbs torque)
Plated and boxed frame
New bumpers
3-link/Coilover front
Stock springs in rear, outboarded shocks, and a custom cantilever airbag overloads.
New seats (buckets?)
Custom gauge cluster

The project has been going a while, I'll do my best to update as I go.

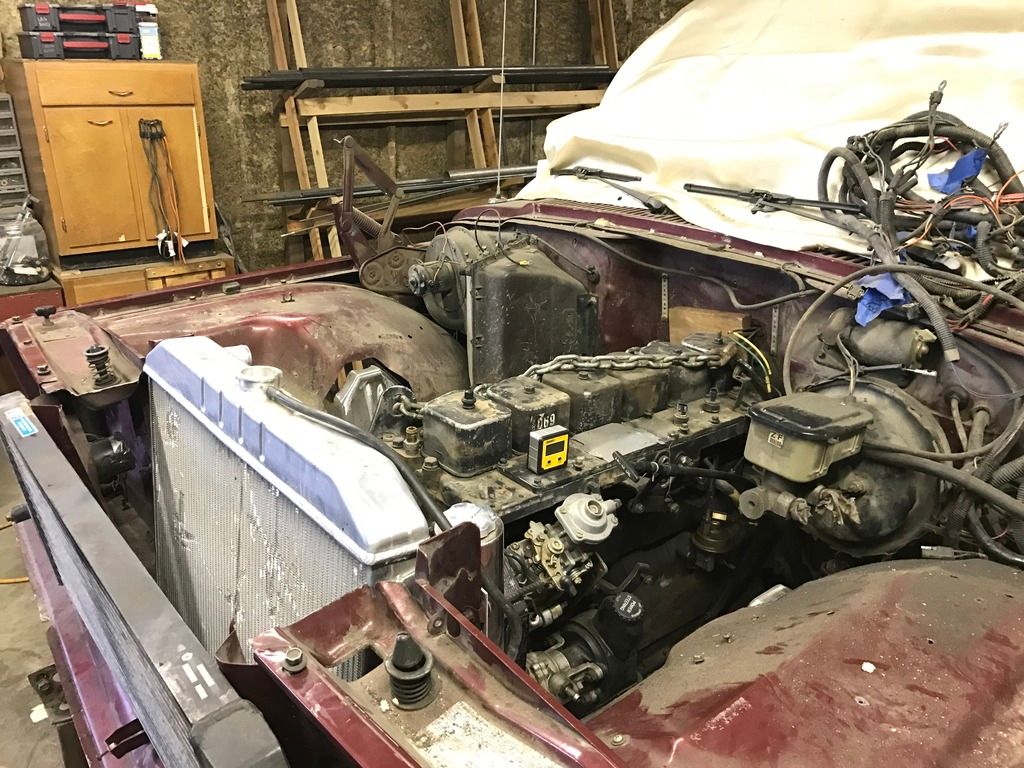

So far I have original drivetrain pulled, 2 inch body lift done (fixed the one rotted mount, rear left mount), 3/16 plated inside and outside of boxed section (will box rest of the C- section). Coil buckets measured and tacked in place, and motor sitting in the hole!

Stock wag.


Last winters transformation.






Tear Down.






The rest.







__________________
DWK

86 GW
Reply With Quote
  #2
Old 11-26-2017, 12:15 PM
Kaiserjeeps's Avatar
Kaiserjeeps Kaiserjeeps is offline
304 AMC

Join Date: Oct 02, 2002
Location: Mooseville Northern Idaho
Posts: 2,491
That is a cool build. I will be following for sure. On your 93 12 valve, check your fan bearing support very carefully for cracks. They have been known to fail ruining everything in front of the motor. I recently helped a guy get one made at a machine shop. They are extremely hard to come by and we searched every dark corner of the internet. Second gen fan supports are available all day long and won't work without changing everything over. I tried to buy his 93 dodge for almost a year. But ended up helping him get it fixed. And if you don't subscribe to the Diesel registry from Geno's garage, you should. I signed up when I thought I was going to get a 12 valve for my CUCV. I changed my mind but the magazines keep coming. It is truly good reading for first, second and third Gen trucks and their motors.
Great build and looking forward to more.
__________________
-----------------------
Am I done yet?

Holy Moly, I am done.....

Most users ever online was 656, 06-30-2007 at 09:50 PM.
I was there! Still waiting for my Tee shirt...

1969 1414X Wag,
71 project J truck FOR SALE
1970 J truck long bed bed FOR SALE
1970 Wagoneer Not Sadie
1983 FJ60 wagon
CJ-5's
83 CJ-7 excellent shape FOR SALE
And soon... Another M715! echo... echo...
Reply With Quote
  #3
Old 11-26-2017, 06:24 PM
bkilby's Avatar
bkilby bkilby is offline
350 Buick

Join Date: Jan 10, 2016
Location: Burbank Ca.
Posts: 986
Nice project! Can't wait to see more progress.
__________________
1974 Cherokee S. It's driving but needs more work. As usual!
Reply With Quote
  #4
Old 11-28-2017, 10:10 PM
BigDctd's Avatar
BigDctd BigDctd is offline
Noob!

Join Date: Dec 04, 2011
Location: Chromo CO.
Posts: 15
Can't say I have heard of it the issue with the fan bearing housing. Have heard of the Killer Dowel pin. Plan on fixing that. But I will definitely look into that, thank you!

Motor mounts built and tacked in today.







__________________
DWK

86 GW
Reply With Quote
  #5
Old 11-29-2017, 06:47 PM
BigDctd's Avatar
BigDctd BigDctd is offline
Noob!

Join Date: Dec 04, 2011
Location: Chromo CO.
Posts: 15

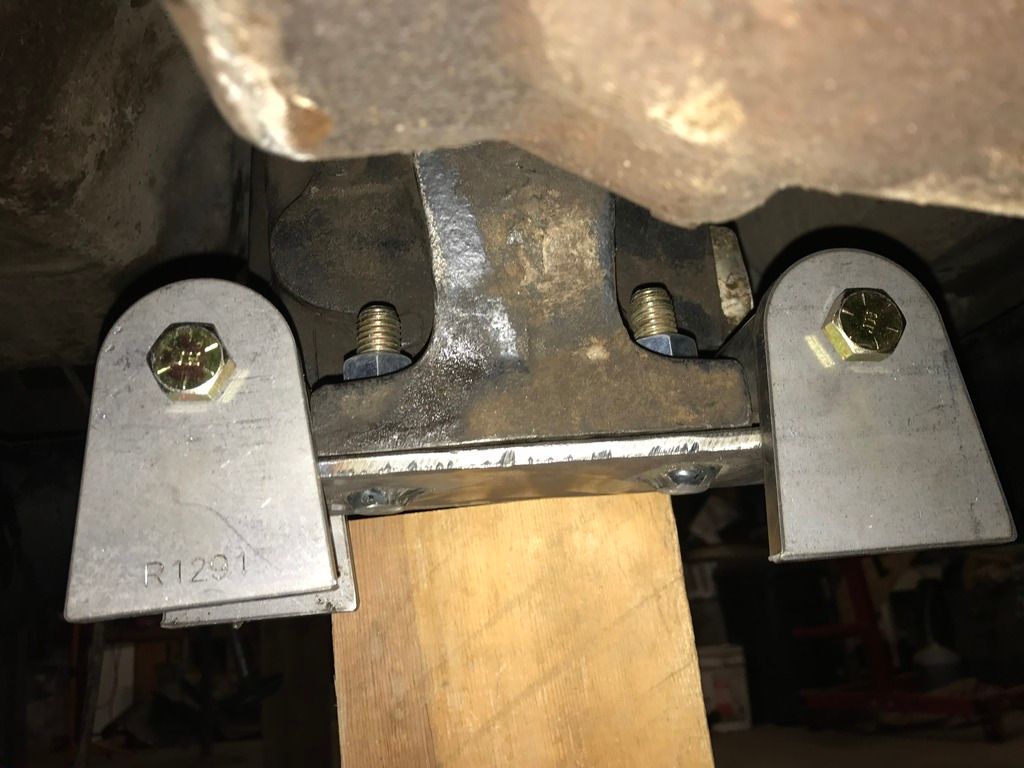

Transfer case in, and started the cross member. Trying to keep it tucked up tight as possible.



__________________
DWK

86 GW
Reply With Quote
  #6
Old 12-01-2017, 07:03 PM
BigDctd's Avatar
BigDctd BigDctd is offline
Noob!

Join Date: Dec 04, 2011
Location: Chromo CO.
Posts: 15
Transmission crossmember in and halfway bolted.







There is tubing connecting the two. The mounts hide it in the pictures.
__________________
DWK

86 GW
Reply With Quote
  #7
Old 12-02-2017, 08:16 AM
Full Size Jeeper's Avatar
Full Size Jeeper Full Size Jeeper is offline
304 AMC

Join Date: Jul 20, 2014
Location: Mandeville Louisiana
Posts: 2,416
Very nice work. What ever (it) is, you have it.
__________________
1978 Wagoneer

401/turbo 400 trans. Quadra-Trac BW1339 (with Low) 4" Rusty's lift with 31" Summit Mud Dawgs

Mods:
Fuel Tank, Red Holley Fuel Pump, Razor Grill (profile pic out dated), Rebuilt steering box
Reply With Quote
  #8
Old 12-03-2017, 01:47 PM
BigDctd's Avatar
BigDctd BigDctd is offline
Noob!

Join Date: Dec 04, 2011
Location: Chromo CO.
Posts: 15

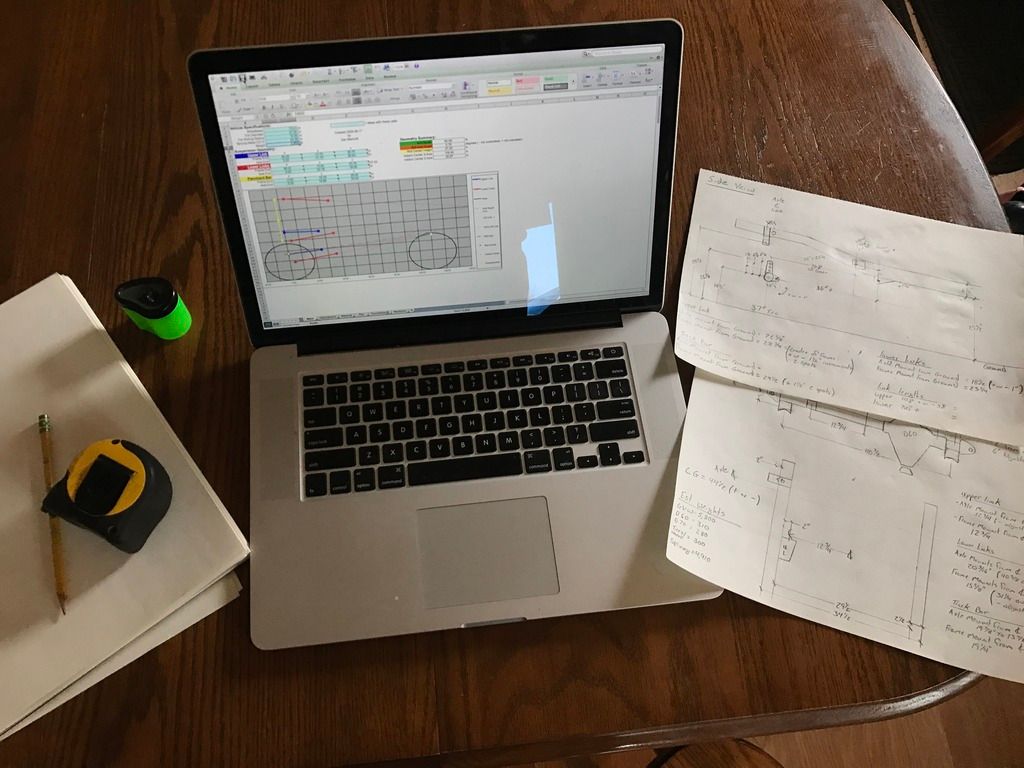

Getting the 3-link dialed in.

__________________
DWK

86 GW
Reply With Quote
  #9
Old 12-05-2017, 05:18 PM
BigDctd's Avatar
BigDctd BigDctd is offline
Noob!

Join Date: Dec 04, 2011
Location: Chromo CO.
Posts: 15

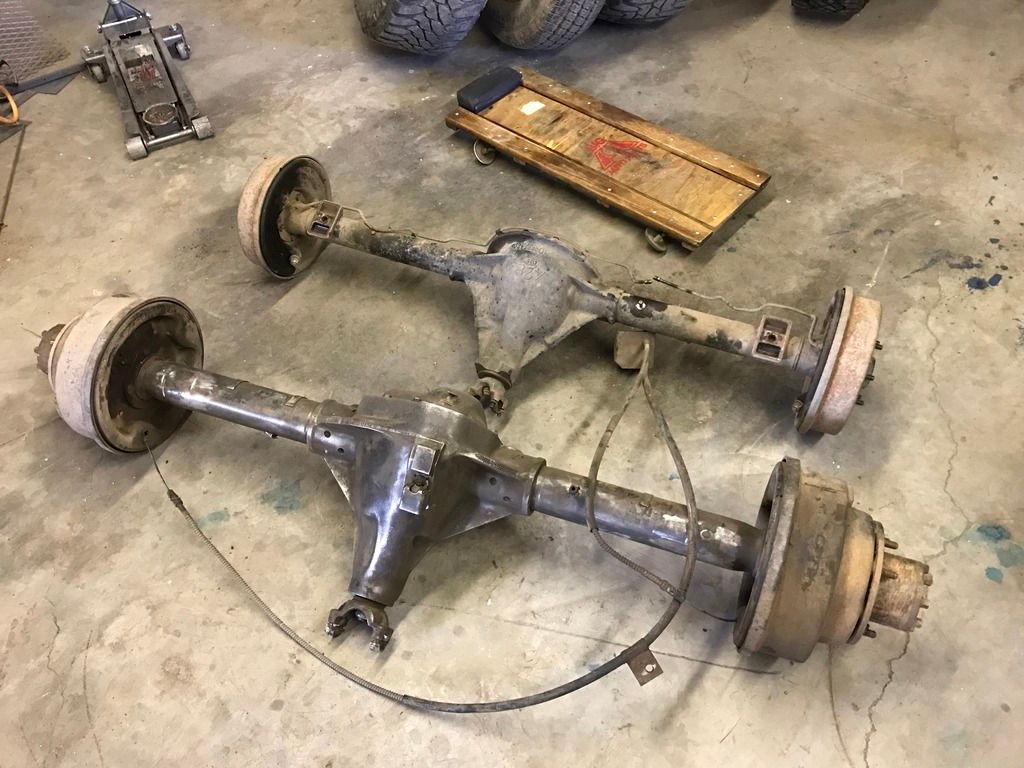

Rear axle and leafs are out. AMC 20 looks scary small compared to the 70. New springs should show up on UPS tonight.
