Engine coolant leak - additive?

My 1984 GW with 150K miles has a small coolant leak in the engine. I can't tell where it is coming from. The attached photo shows amount of coolant after the GW sits about a week.

Can I use a coolant engine leak additive to stop this leak. If so what do you recommend? I have been fixing leaks for a couple of years and this is the last one. Engine runs great after warmed up. cold blooded when first starts.

__________________
1984 Grand Wagoneer, 360
3" body lift, 4" spring lift
4.88 gears
Lincoln Locker Front, Detroit Locker in rear.
Reply With Quote
  #2
Old 04-18-2011, 11:04 AM
1cdccop's Avatar
1cdccop 1cdccop is offline
Gear Head

Join Date: Jan 28, 2008
Location: susanville ca
Posts: 561
What area is le leak comming from? Front or back of the engine. Crawl under the truck and look at the freeze plugs on either side of the engine block. Also inspect around your timing cover, water pump and look around the thermostat housing. These parts are aluminum and will spawn leaks when the engine cools down. With that kind of mileage on the engine those are the areas I would look first. You can also have the cooling system pressure tested for leaks. good luck.
__________________
When all is said and nothing is done, you've just had a meeting with management
Reply With Quote
  #3
Old 04-18-2011, 11:09 AM
1cdccop's Avatar
1cdccop 1cdccop is offline
Gear Head

Join Date: Jan 28, 2008
Location: susanville ca
Posts: 561

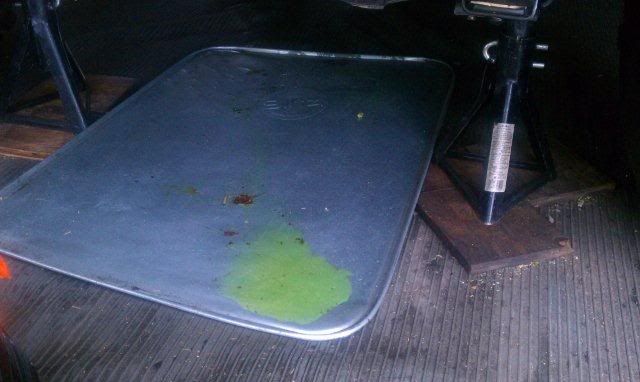

By looking more closely at your picture, looks like its comming from the lower radiator hose. Check the connections on the hose and squeez it with your hand (engine cold) and see if it leaks at either connection.
__________________
When all is said and nothing is done, you've just had a meeting with management
Reply With Quote
  #4
Old 04-18-2011, 11:34 AM
haynesm haynesm is offline
Member

Join Date: Apr 19, 2010
Location: Fort Collins, CO
Posts: 30
The ponding of the coolant is from the slope of the drain pan. The leak coming from the front of the engine and runs by the fuel pump and down to the oil pan gasket. then follows the oil pan until it drips off.
I have resealed the theromstat housing and checked all the hoses. seams to be coming from the top front of the engine.
__________________
1984 Grand Wagoneer, 360
3" body lift, 4" spring lift
4.88 gears
Lincoln Locker Front, Detroit Locker in rear.
Reply With Quote
  #5
Old 04-18-2011, 12:03 PM
1cdccop's Avatar
1cdccop 1cdccop is offline
Gear Head

Join Date: Jan 28, 2008
Location: susanville ca
Posts: 561
I had a similar leak on my 401 in my CJ and would collect on top of the timing cover near the distributor. If I recall it looked to be comming from the front of the intake manifold in the "valley". That engine had an aluminum intake. If you want to try an additive I would go with something like alumiseal. Dont know if thats the correct spelling, but its the silver stuff. Dont use the junk with the pellets in it.
__________________
When all is said and nothing is done, you've just had a meeting with management
Reply With Quote
  #6
Old 04-18-2011, 12:47 PM
FSJ Guy FSJ Guy is offline

Join Date: Mar 20, 2005
Location: Colorado
Posts: 10,061
I've used Bar's Leak in the past when I didn't know any better. ;-)

I'd locate the leak and fix it. It sounds like it's either the intake manifold or possibly the timing chain cover or water pump.
__________________
Ethan Brady
1987 Grand Wagoneer, slightly longer than stock.

www.bigscaryjeep.com

Don't mess with me. I once killed a living hinge.
Reply With Quote
  #7
Old 04-18-2011, 12:49 PM
FSJunkie's Avatar
FSJunkie FSJunkie is offline
The Nigel Tufnel of the FSJ world.

Join Date: Jan 09, 2011
Location: Not The Hot Part, Arizona
Posts: 4,040
Don't put that miracle stop leak stuff in your engine. It looks like swamp water and has chunks of crap in it, I would never put that in my engine.
__________________
'72 Jeep Wagoneer Custom, 360 V8

I love how arguements end as soon as Ristow comments. Ristow is right...again.
Reply With Quote
  #8
Old 04-18-2011, 12:53 PM
navegare's Avatar
navegare navegare is offline
Member

Join Date: Aug 29, 2005
Location: Austin Texas
Posts: 72
I just put Alumaseal Stop Leak from Advance Auto in my radiator while I wait for the replacement to arrive and it's working OK. The fan shroud somehow rubbed into the radiator core and created a slow leak. Regardless of how well it's working, I'm changing the radiator to correct the problem because I don't feel like getting stranded when I least expect it.

As mentioned above, your problem sounds like the water pump is on the way out or is not sealing well to the timing cover.

While at the parts store I noticed they sell a UV dye that might be the ticket to pinpoint the leak, but I've never used it.
__________________
1989 Grand Wagoneer
1978 F250 Ranger XLT Camper Special, Extended Cab, 12 Valve Cummins turbo diesel, 47RE Automatic, Dana 60's, 4x4, DNE2 Auxiliary Transmission
1980 J20 - Bringing it Back to Life
Reply With Quote
  #9
Old 04-18-2011, 12:58 PM
cajun_lad's Avatar
cajun_lad cajun_lad is offline
Master Mechanic

Join Date: Feb 17, 2006
Location: Vidalia, GA
Posts: 1,368
Quote:
Originally Posted by navegare
because I don't feel like getting stranded when I least expect it.



And you own 2 FSJ's???

__________________
Joey
Jeep-Less
Reply With Quote
  #10
Old 04-18-2011, 01:19 PM
joe joe is offline

Join Date: Apr 28, 2000
Location: PNWet, USA
Posts: 22,392
Gonna be easier and cheaper to find/fix the leak now than it will be later figuring out what part of the cooling system is plugged up. Not saying rad goop will plug anything up but even if Bars Leak or whatever goop fixes your leak it's only temporary and will leak again soon and you sure don't want to be adding even more goop on top of the old goop.
__________________
joe
"Don't mind me. I'm just here for the alibi"
Reply With Quote
  #11
Old 04-18-2011, 05:53 PM
badaboom's Avatar
badaboom badaboom is offline
AMC 4 OH! 1

Join Date: Jun 05, 2001
Location: High Country Colorado, USA
Posts: 3,753
Could well be the timing cover gasket
Have you recently replaced the Water pump?

Many times it is suggested to replace the timing chain cover gasket when doing the water pump. There are 3 or four common bolts between the timing cover and water pump sometimes if just replacing the water pump the common bolts will loosen up and on re-torque may not seal them up effectively.
__________________
1981 Jeep J10 Laredo, 401-V8, 625 Carter, Lunati 262/268, Edelbrock Performer, MSD Ign., Hydroboost, Hyd. Clutch, Flow Cooler WP, Be Cool Aluminum Radiator, Doug Thorley, NV4500 5-Spd, NP-231D, 3.73 F/R Trac-Locs, Rustys 4" Lift, Vintage Red Metallic, Black Interior and 33X10.50X15 BFG, FiTech400 to come - IN PROCESS Bling Bling Cha-Ching
Reply With Quote
  #12
Old 04-18-2011, 06:07 PM
68glad's Avatar
68glad 68glad is offline
350 Buick

Join Date: Jun 01, 2006
Location: stayton,oregon
Posts: 1,042
Quote:
Originally Posted by FSJunkie
Don't put that miracle stop leak stuff in your engine. It looks like swamp water and has chunks of crap in it, I would never put that in my engine.

agreed
__________________
68 gladiator- 455/400/20 r.i.p.
78 wagoneer- 401, drw60, drw70, 203/205, 38's, oba, obw, hydroboost, dual p/s pump, bla bla bla

"If you don't stand for something, you'll fall for anything."
Reply With Quote
  #13
Old 04-18-2011, 06:14 PM
austinaubinoe's Avatar
austinaubinoe austinaubinoe is offline
FSJ Maniac

Join Date: Aug 08, 2010
Location: Maryland/ Williamsport, PA
Posts: 2,994
If its a small crack in the rad, ive had good luck with this high temp putty epoxy on my TJ's radiator. does not work to well if its plastic that cracked though.

They only stuff id ever pour into my radiator is that head gasket seal stuff. Ive heard it works great. But that would only be in a complicated import motor (you know, the kind with rubber bands holding it together)
__________________
Austin

1991 Hunter Green Grand Wagoneer
5.9 2bbl-727-NP229-TFI-30x9.5 Firestone M/T's-Brush Guard-tire mount
SOON: 4350 and cast iron intake

Others:
-1994 Baby Grand
-2000 XJ cherokee on Tons
-1953 REO M35A2 6x6
-1955 Willys Pickup



Quote:
Originally Posted by rustywagoneers_com
i am not an addict, i can stop anytime.
i dont have a problem, you people have the problem.
Reply With Quote
  #14
Old 04-18-2011, 07:07 PM
Rich88's Avatar
Rich88 Rich88 is offline
FSJ Maniac

Join Date: Nov 20, 2008
Location: Wilds of Ellington, CT
Posts: 4,182
I've had two maddening coolant leaks from the front that were hard to find:

1) Where the lower rad hose clamps to the water pump intake.
2) The weep hole in the water pump housing. This is a tiny hole in the bottom of the casting just forward of the shaft seal. Its an "early warning" that the seal is on its way out.

But lets hope its not the water pump gasket seal seeping.
__________________
Jeepasaurus (Wagonus Grandi quadropedus)
88 GW 360-.030 over/2150/727/229/Posi, e-pump, AC (broke), tow package, Monroe Air Shocks, TFI, CTO-Free, AIR-free, oil & tranny coolers, dried knuckle blood all over, GM 350 TBI in a box, waiting...
"You're an FSJ'r when the parts guys memorize your name, phone & credit card#."

Last edited by Rich88 : 04-18-2011 at 08:47 PM.
Reply With Quote
  #15
Old 04-18-2011, 07:46 PM
letank's Avatar
letank letank is offline
AMC 4 OH! 1

Join Date: Jun 03, 2002
Location: San Francisco
Posts: 4,089
Pressure testing is really the best tool if you cannot see the origin of the drops. Get the pump at the zone or any other parts place that loan tools.

I had a few drops when cold, and the instant I added 5 to 6 psi, I found the failing gasket.

Otherwise the bar's leak or other mystery products will thicken your coolant a bit and will likely make your engine run warmer... so after 50 or 100 miles you can start to dilute the coolant. I fixed the heater freeze plug, after hammering it I could not pull it out... It has been 8 years... and a few coolant changes.
__________________
Michel
74 wag, 349Kmiles on original ticker/trany, except for the rust. Will it make it to the next get together without a rebuilt? Status: needs a new body.
85 Gwag, 229 Kmiles. $250 FSJ test lab since 02, that refuses to give up but still leaks.

See Ouray 2013, Engine bits and Fuel and brake lines, and Body work
Reply With Quote
  #16
Old 04-18-2011, 09:17 PM
serehill's Avatar
serehill serehill is offline
Gone,Never Forgotten.

Join Date: Nov 22, 2009
Location: Mesquite Texas
Posts: 8,619
Quote:
Originally Posted by Rich88
I've had two maddening coolant leaks from the front that were hard to find:

1) Where the lower rad hose clamps to the water pump intake.
2) The weep hole in the water pump housing. This is a tiny hole in the bottom of the casting just forward of the shaft seal. Its an "early warning" that the seal is on its way out.

But lets hope its not the water pump gasket seal seeping.

The weep hole in the water pump is what I was waiting for someone to say.
Water pump hoses & t stat housing would be my primary objectives.
Remember what stop leak does there are small ports in your engine it wil stop up. This stuff is not intelligent & will usually mess up more than it fixes. There are times that if there is a leak between steel & a rubber hose or an alluminum to steel surface where it will temporarily seal it & it will come back. I understand if you have a terminal issue what the heck ( Cracked head or block). I've spent many hours saying bad words cleaning this crap out of a system. . You know if it's leaking out your water pump weep hole it's getting ready to launch your fan into the radiator. The weep hole is the 1/4 inch hole on the bottom of your water pump. If it is leaking out of the weep hole & you put stop leak in it. You will realize later that you shouldn't have stopped up thast hole when your on the side of the road trying to figure how your fan got buried in the radiator & other things. FYI you never know. Assumptions are the mother of all Fords.
I guess an elementary tighten everything is in order here.
Reply With Quote
  #17
Old 04-19-2011, 12:29 AM
navegare's Avatar
navegare navegare is offline
Member

Join Date: Aug 29, 2005
Location: Austin Texas
Posts: 72
Quote:
Originally Posted by cajun_lad


And you own 2 FSJ's???


I'm just a lucky dog... 25,000 highway miles in the 9 months I've had the Wag, not stranded yet

Uh... I have the strange feeling I've just jinxed myself...
__________________
1989 Grand Wagoneer
1978 F250 Ranger XLT Camper Special, Extended Cab, 12 Valve Cummins turbo diesel, 47RE Automatic, Dana 60's, 4x4, DNE2 Auxiliary Transmission
1980 J20 - Bringing it Back to Life
Reply With Quote
  #18
Old 04-19-2011, 02:18 AM
serehill's Avatar
serehill serehill is offline
Gone,Never Forgotten.

Join Date: Nov 22, 2009
Location: Mesquite Texas
Posts: 8,619
Murphy is about to show up

Man I would walk foe a while.

Reply With Quote
  #19
Old 04-19-2011, 02:43 AM
PlasticBoob's Avatar
PlasticBoob PlasticBoob is offline
All Makes Combined

Join Date: Jun 30, 2003
Location: Long Beach, CA
Posts: 4,008
I will tell you how to use Bars Leaks. I have a corroded block I have been trying to fix for years. As a last resort, I tried Bars Leaks for LARGE LEAKS, but the trick is to only put in a TINY amount. Out of the whole bottle, I put in maybe 8-12 pellets ground up into various sizes. I ran it for a few days, and then FLUSHED the entire cooling system to get all of it out. Yes, I had to flush it about 8 times, but IT SEALED THE LEAK! However, it was only a temporary fix and the leak returned a few months later. Now, the leak may have returned because Bars Leaks is garbage, or, more likely, my block at the timing cover is just so corroded that Bars Leaks can't seal that particular type of leak due to the pressure and irregularities.

Take my experience for what it's worth. Basically I'm on the fence about it. Mind you I used it as a last resort only, though there are confirmed reports that actual vehicle manufacturers run Bars Leaks or similar pellets in their brand new cars straight from the factory. Google it.
__________________
Rob
1974 Cherokee S, fuel injected 401, Trans-am Red, Aussie locker 'out back'
Click for video
Reply With Quote
  #20
Old 04-19-2011, 05:35 AM
drlocke's Avatar
drlocke drlocke is offline
Roadside Mechanic

Join Date: Dec 29, 2003
Location: Western MA
Posts: 9,725
I'm thinking one of the large rad hoses is letting it go at an end. Make sure the barbs are clean and not eroded pie plate thin. You may have to walk up on the clamps a few times as the new hoses settle in.

The only other thing one could do is to go to a DIY car wash or get a pressure washer and get the engine completely clean. And then completely dry. Run it up to temp and start looking.

IMHO leak-stop agents are for the situation where you have a clunker you need to drive for a while until you can afford a replacement and can junk the SOB. That said a friend of mine has always sworn by ground pepper. He has used it in cars with mildly blown head gaskets and managed to stop coolant getting into the cylinders altogether almost every time. Then the junkers could be driven for many miles before being junked for something better.
Reply With Quote
