    Maybe it?s a little late to start a build thread on this since I started around ?95, stopped around the turn of the century and didn?t take pics along the way.


    But I like to look at pics of other guy?s stuff and since I started working on it again a few months ago I took some pichers of my progress.


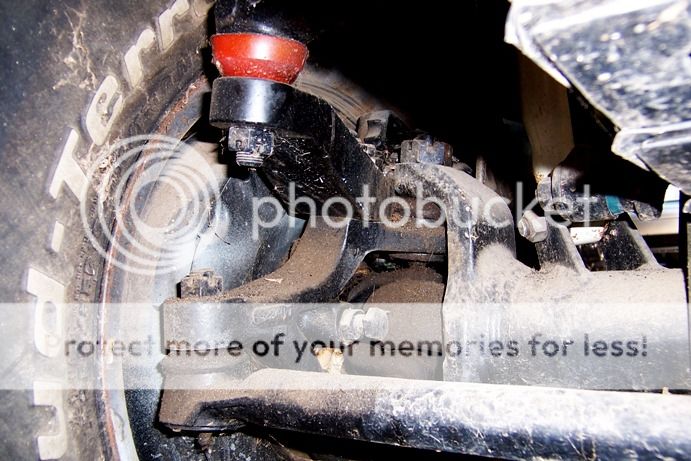

    Front Suspension:























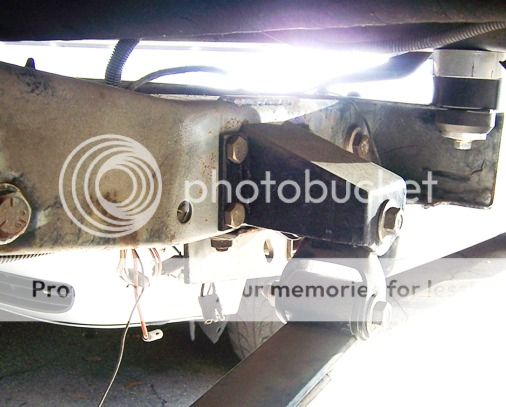

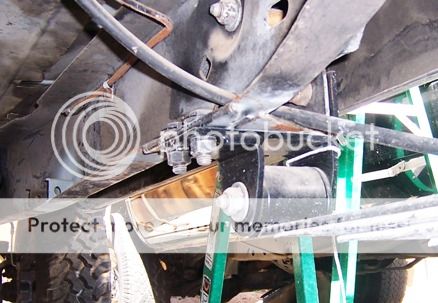

    Rear:



















    Last edited by SJTD; 03-15-2013, 02:31 PM.
    Sic friatur crustulum

    '84 GW with Nissan SD33T, early Chev NV4500, 300, narrowed Ford reverse 44, narrowed Ford 60, SOA/reversed shackle in fornt, lowered mount/flipped shackle in rear.

  • #2
    Looks good!
    2000 Infinity QX4, 3.3L, MPFI, 4 speed auto, 2 speed Nissan tcase, Unibody, IFS front, 4 link rear solid axle with 255-70/16s

    IFSJA WMS PROJECT
    EARLY WAG LIFT SEARCH

    ...Pay no attention to these heathen barbarians with their cutting torches and 8" lift kits!...
    Self Inflicted Flesh Wound

    Comment


    • #3
      I have the interior gutted. Under (above?) the headliner were strips of what appeared to be asphalt based sound insulation. They were debonded and resting on the headliner.

      I was debating what to replace them with. Conventional wisdom is to iron on a layer of Dynamat or one of the knock offs.

      Then I came into some two part urethane foam for free so I?m going to use that. It will certainly provide thermal insulation and stiffen the roof. I think it?ll do a good job on wind noise coming through the roof.

      Since I plan to inject it into the channel around the edge of the roof then spray the flat areas I have to deal with the the A-pillar/roof joint first.

      Looks like six or seven different pieces meet here. They used some stiff Bondo-like filler and seam sealer. When it fails water gets under the paint and into the seams. It can also run down into the door hinge cavity. If the sealer between that cavity and the interior has a hole you have source of water to rust the floor.






      There?s a gap in the drip edge that is supposed to be covered by a stainless piece. Note some factory brazing. Doesn't go well with welding unless you remove it.






      I?m not reusing the plastic covered aluminum trim. If I can?t find (or am unwilling to pay for) some old stainless trim I?ll do without. That means filling the gap. The lower piece is for the left side. The other two are for the right. The right windshield gutter doesn?t come up high enough to meet the roof gutter so two pieces are needed.





      Gutter edge finished. Still have to fill in the gap underneath and braze it up. I didn't want to try to remove the factory brazing so there will be some gaps to close where it was to close to the braze to weld.





      The filler piece for the underside





      My only concern it that these joints will now be stiff and crack. Time will
      tell.
      Sic friatur crustulum

      '84 GW with Nissan SD33T, early Chev NV4500, 300, narrowed Ford reverse 44, narrowed Ford 60, SOA/reversed shackle in fornt, lowered mount/flipped shackle in rear.

      Comment


      • #4
        where did you get your rear spring mounts?

        They look great. I need some.

        80 Cherokee
        360 ci 727 with
        Comp cams 270 h
        NP208
        Edlebrock performer intake
        Holley 4180
        Msd total multi spark.
        4" rusty's springs
        Member, FSJ Prissy Restoration Association

        If you can't make it better why waste your time. No use repeating the orignal mistakes. I'm to old to push it that's why.

        Comment


        • #5
          Originally posted by serehill
          They look great. I need some.
          x2
          1980 Jeep J-20
          1979 Jeep J-10 Honcho
          1991 Jeep Grand Wagoneer
          1975 Jeep Wagoneer- The Green Bastard, from Parts
          Unknown
          1968 Plymouth Satellite
          1978 Camaro- back in action
          1980 'Vette. Chevette. Please someone buy this

          Comment


          • #6
            Got the body primed with epoxy, need to do the seam sealer.


            There were some places on the cowl with more big blobs of the hard filler. I put in some patches to allow use of flexible sealer.


            I decided not to seal the lower edge of these. Seems to me they should allow drainage or water could puddle. The openings only enter the cowl; not the interior.





            Sprayed the two part urethane foam on the roof.







            Trimmed it to the crossmembers. Need to add a little more here and there. It ended up about ¾” thick in the two center areas.





            The front and rear area have room for more since the headliner sits on the structure above the windshield and tailgate and slopes to the nearest crossmember. Also plan to fill the hollow members at the front, back and sides.

            It really does take the “bong” out of the roof in those areas; not so much in the center sections where its thinner. I think they are better but it’s hard to say for sure. The camera didn’t save the before recordings. Don’t know if the camera mic would have been good enough anyway.

            If I were to do it again I think I’d put up some CLD strips first.

            Been pondering the headliner board. One problem with finding a replacement is that the front section is about 50” long. Most material comes in 48” widths. The rear section is only 44”. If I’d noticed this before I would have moved the crossmember. Now I plan to attach a strip of steel about 2” wide to the crossmember and attach the divider strip to that making the front section less than 48”
            Last edited by SJTD; 06-25-2014, 03:12 PM.
            Sic friatur crustulum

            '84 GW with Nissan SD33T, early Chev NV4500, 300, narrowed Ford reverse 44, narrowed Ford 60, SOA/reversed shackle in fornt, lowered mount/flipped shackle in rear.

            Comment


            • #7
              Originally posted by serehill
              They look great. I need some.
              Just noticed you asked about the spring mounts.

              Sorry I didn't see it earlier. I made them.
              Last edited by SJTD; 06-25-2014, 03:14 PM.
              Sic friatur crustulum

              '84 GW with Nissan SD33T, early Chev NV4500, 300, narrowed Ford reverse 44, narrowed Ford 60, SOA/reversed shackle in fornt, lowered mount/flipped shackle in rear.

              Comment


              • #8
                The foam is an interesting idea.. I pulled some support beams out of a jy saggy that I will add to my roof to get some extra support. Might be an idea to add support to the larger sections of roof..
                One day I will wake up and realize that my jeep is complete...one day, I just know it.

                88Wag, LT1/4L60E/NP242, F150 fuel cell, discs, J20 axles, Truetrac & Grizzly, 3.73
                http://imgbox.com/g/rNuIasKYrS
                95YJ, STaK 300, D44's, SOA, ARB's, 4.56s, Bilsteins, 35" KM2's
                50 CJ3A
                77 J-10, 360/T-18/D20, SOLD

                Comment


                • #9
                  I would have left the gapping holes open there, easier for leaves and crap to be flushed out of the cowl, X2 on not sealing drain holes.
                  Looking good though, nice job on the roof and suspension.



                  Originally posted by SJTD
                  Got the body primed with epoxy, need to do the seam sealer.


                  There were some places on the cowl with more big blobs of the hard filler. I put in some patches to allow use of flexible sealer.


                  I decided not to seal the lower edge of these. Seems to me they should allow drainage or water could puddle. The openings only enter the cowl; not the interior.

                  http://i371.photobucket.com/albums/oo156/anotherjoespics/Wag%20Roof/P1000116_zps073ca6f0.jpg[/IMG]

                  -----------------------------------------
                  Home of ADHD project list

                  1977 J-10 Honcho 360-T15-D20
                  1977 Cherokee WT 360-Th400-NP241 true-trac(s)
                  1979 Cherokee 4 Door 258-T-18-D20
                  1981 Cherokee Chief WT 360-727-NP208
                  1972 K20 Suburban 350 SM465 205
                  And the other stuff that gets driven
                  ----------------------------------------

                  Comment


                  • #10
                    Nice.

                    Never thought of running spray foam in my cab. Always figured it would stink like crazy everytime it got hot.

                    BTW, what does your Sig say in Latin: "Always chipping rust?"?? that would be fitting for a Jeep.

                    Comment


                    • #11
                      Those holes were "sealed" by the factory and I was just looking for a better way to do it than some form of bondo like the factory used. After thinking about it I decided not to seal them. Leaving them open probably would have been better. I can always remove them if junk appears to be building up on them.

                      I find it appalling the number and size of holes Jeep just plugged up with various types of filler/sealer. There are some inside the cowl that will leak into the cab, some on the edges of the firewall, the ones already mentioned at the top of the A pillar, the top corners of the windshield, etc, etc.

                      Maybe other cars were built like this and I just never got into them in this much detail.
                      Sic friatur crustulum

                      '84 GW with Nissan SD33T, early Chev NV4500, 300, narrowed Ford reverse 44, narrowed Ford 60, SOA/reversed shackle in fornt, lowered mount/flipped shackle in rear.

                      Comment


                      • #12
                        Got two coats of AL's HNR on the interior. Used the undercoating gun that comes with the Raptor kit.

                        Prepped:





                        Two coats, one gallon. Another gallon to get the recommended coverage:





                        Close up:




                        When wet it doesn't have much texture other than the splatter from the gun. After drying it smoothes out and shrinks back and looks like flat paint with fine sand. Not something I'd want to leave exposed.

                        It's going to get coated with Raptor from a HVLP gun.
                        Last edited by SJTD; 05-03-2015, 12:04 AM.
                        Sic friatur crustulum

                        '84 GW with Nissan SD33T, early Chev NV4500, 300, narrowed Ford reverse 44, narrowed Ford 60, SOA/reversed shackle in fornt, lowered mount/flipped shackle in rear.

                        Comment


                        • #13
                          Since the interior is stripped I’m thinking about what to do about trim.
                          The door panels will be redone in a more tasteful less busy pattern.Pillars between the doors below glass level will be the same material. Kick panel either the same stuff or carpet.

                          Shelf paper above the door panels will be gone. Panels will end where they should, at the top of the recessed part of the doors. All the vinyl and plastic on pillars at glass level will be gone. Dash pad will be gone.

                          So what to do with all this exposed metal. Thinking about two possibilities other than paint. First is a coat of Raptor, same color as the exterior, sprayed with an HVLP gun for more uniform texture. Fairly thick on the doors for comfort when resting my arm on it.

                          Same on the pillars and around quarter windows. Same on the dash but I’m wondering about glare from a light color. Any worse than the huge off-white hood? Tint it to match the upholstery? (gray)

                          Other possibility on the top of the doors would be the same material as the panels, maybe even padded, but I’m wondering about it being tucked under the door wipe affecting the fit of the wipes which I’ve read can be problematic on their own.

                          Whadaya think?
