International Full Size Jeep Association
Home Forums Reader's Rigs Tech Library Trail Stories FSJ-List
International Full Size Jeep Association

Go Back   International Full Size Jeep Association > Tire Kickin' > Build Threads

Reply

Thread Tools Search this Thread Display Modes
  #241
Old 05-26-2017, 03:58 PM
bkilby's Avatar
bkilby bkilby is offline
350 Buick

Join Date: Jan 10, 2016
Location: Burbank Ca.
Posts: 901
What's even harder is finding a tcase guy that knows wtf he's doing and to get him to return phone calls. The Norcal guy never called today after me telling him yesterday that I'm ready to buy. I found a new guy fairly local that says he has two. I gave him my phone number for him to send pics (at his request) and never heard from him either.
__________________
1974 Cherokee S. It's driving but needs more work. As usual!
Reply With Quote
  #242
Old 05-29-2017, 08:18 AM
fulsizjeep's Avatar
fulsizjeep fulsizjeep is offline
Señor Jackhead

Join Date: Aug 21, 2002
Location: Jubilee Jeeps.SWCO
Posts: 22,358
What a wild ride. I really appreciate your desire to go MOPAR and Hemi to boot. Good luck on the tcase hunt!
__________________
Flint
Ran when parked.
http://jubileejeeps.org/quadratrac
88 GW, 401/727/208, 5" lift, D44s/4.10s/locked up, 35s with a few Evil Twin & TT's Fabworks mods
76 401 Wag, 77 401 Wag, 77 401 J20
http://eviltwinfab.com http://www.ttsfabworks.com
Reply With Quote
  #243
Old 05-29-2017, 09:47 PM
bkilby's Avatar
bkilby bkilby is offline
350 Buick

Join Date: Jan 10, 2016
Location: Burbank Ca.
Posts: 901
Ha! Thanks! I have a nice NP231DHD sitting at the shop that I ended up installing today. Well, kind of. Had to get rid of the gas tank to get it in. I need a tranny mount solution now but I'm working on it.

This will require a late model front axle though. I think I might know where to get one. The floor is shaped to favor a passenger drop tcase but I think I can still make this all work. I'm thinking a TJ shifter with the cable mod from either Novak or Advance Adapters but my big concern is the input gear. It's just barely long enough to engage the seal. The long gear is too long but I might have to get one and machine it down to fit proper. Time will tell. Now to find a rear mount gas tank. I think I'll call Aero Tanks tomorrow to get their dimension. I don't like tanks that hand down too low....
__________________
1974 Cherokee S. It's driving but needs more work. As usual!
Reply With Quote
  #244
Old 05-30-2017, 02:52 PM
Thompson Off-Road Thompson Off-Road is offline
Member

Join Date: Feb 20, 2014
Location: Jefferson City, Mo
Posts: 19
Quote:
Originally Posted by bkilby

This will require a late model front axle though.

I have a late model front axle if needed. As for the transmission mount- mine is based off the 2000 chevy silverado 1500 ones. 4.5 inches apart. Your PM box is full.

Last edited by DarkMonohue : 05-30-2017 at 09:12 PM.
Reply With Quote
  #245
Old 06-01-2017, 07:32 AM
bkilby's Avatar
bkilby bkilby is offline
350 Buick

Join Date: Jan 10, 2016
Location: Burbank Ca.
Posts: 901
Finally got around to making the trans mount. I ended up using the poly mount from the Qtrac (chevy mount) and made it work. The trans adapter has 4 threaded holes to bolt the OEM trans mount to the adapter. The two front holes are 1/2" lower than the rear holes. I ended up cutting a couple pieces of 1/4" plate to make up that difference, then tapped two holes for the poly mount. Kinda hard to explain without pics and my iphone camera died, but I'll get some pics...

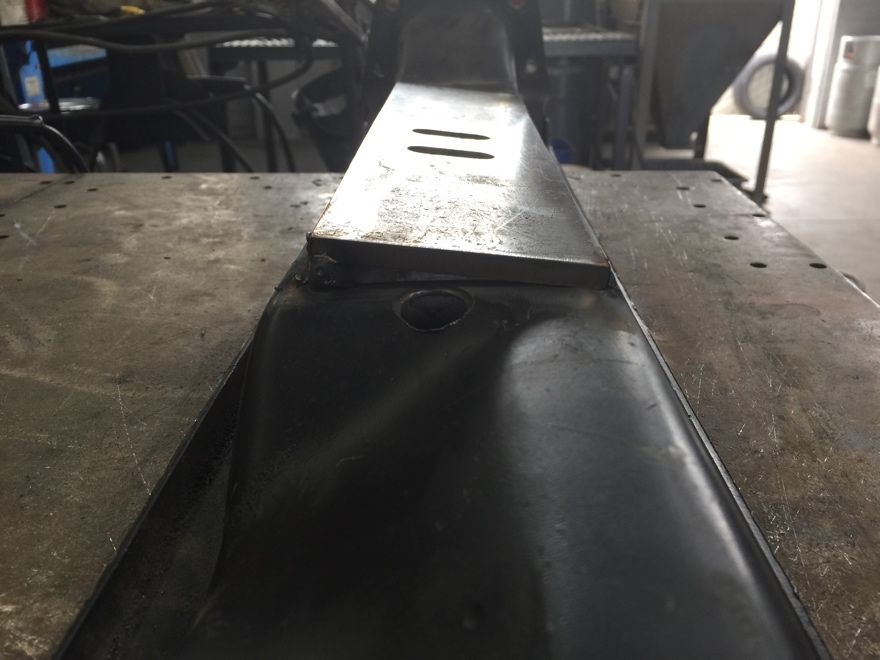

Anyhow, on the crossmember I ended up cutting the top center section out and cut another piece of 1/4" plate with slots and welded to the crossmember. It's not too hard to do, just takes a little time. The trans mount wasn't sitting parallel to the cross member (due to angle of engine) and although it would have worked, I spaced up the 1/4" plate anyhow. I had to take these pics with a friends phone. Also, because I'm using a left hand drop tcase, I flipped the crosss member around for better front drive shaft clearance.





__________________
1974 Cherokee S. It's driving but needs more work. As usual!
Reply With Quote
  #246
Old 06-01-2017, 03:12 PM
Frank Ziebert's Avatar
Frank Ziebert Frank Ziebert is offline
327 Rambler

Join Date: Dec 04, 2016
Location: Sisters, OR
Posts: 621
That looks like it will work just fine.
Reply With Quote
  #247
Old 06-01-2017, 04:33 PM
bkilby's Avatar
bkilby bkilby is offline
350 Buick

Join Date: Jan 10, 2016
Location: Burbank Ca.
Posts: 901
Thanks Frank. If it doesn't, I'll be the first to know. Lol.
Now if I can just get out of this office and go work on my junk...
__________________
1974 Cherokee S. It's driving but needs more work. As usual!
Reply With Quote
  #248
Old 06-04-2017, 09:12 PM
Achilles's Avatar
Achilles Achilles is offline
350 Buick

Join Date: May 12, 2004
Location: Texas
Posts: 1,151
Look really good, I bet it will work just fine!
__________________
1983 Wagoneer Limeted, 169k 360 AMC, NP 229, 727,
MODS: 2003 Durango bucket seats:
http://www.ifsja.org/forums/vb/showthread.php?t=159286
Build Thread: http://www.ifsja.org/forums/vb/showthread.php?t=174925
Reply With Quote
  #249
Old 06-05-2017, 07:59 AM
bkilby's Avatar
bkilby bkilby is offline
350 Buick

Join Date: Jan 10, 2016
Location: Burbank Ca.
Posts: 901
As luck would have it, I found the tcase I need on Ebay last night. For cheap too so I bought it. It should be here in a couple of days to test fit and decide to use it or the one that's in now. Too bad I didn't see it last week before cutting up the cross member. Lol.
__________________
1974 Cherokee S. It's driving but needs more work. As usual!
Reply With Quote
  #250
Old 06-05-2017, 08:17 AM
Achilles's Avatar
Achilles Achilles is offline
350 Buick

Join Date: May 12, 2004
Location: Texas
Posts: 1,151
That is exactly the kind of luck that I have.
__________________
1983 Wagoneer Limeted, 169k 360 AMC, NP 229, 727,
MODS: 2003 Durango bucket seats:
http://www.ifsja.org/forums/vb/showthread.php?t=159286
Build Thread: http://www.ifsja.org/forums/vb/showthread.php?t=174925
Reply With Quote
  #251
Old 06-08-2017, 07:32 AM
bkilby's Avatar
bkilby bkilby is offline
350 Buick

Join Date: Jan 10, 2016
Location: Burbank Ca.
Posts: 901
Not much to write about right now. Just in a holding pattern for parts. Tcase and exhaust manifold gaskets mainly. I have the computer and wire harness on order, should see that in 2-3 weeks. I'm definitely going need to relocate the throttle body. It's pointing straight up and there's not enough room to add an intake elbow and still close the hood. Jeep Speed Shop makes an adapter to relocate the TB do the pass. side of the engine and point it towards the fender. Hood clearance!
__________________
1974 Cherokee S. It's driving but needs more work. As usual!
Reply With Quote
  #252
Old 06-13-2017, 04:59 PM
bkilby's Avatar
bkilby bkilby is offline
350 Buick

Join Date: Jan 10, 2016
Location: Burbank Ca.
Posts: 901
So, I got the NP241D in on Friday and found out right away that the input gear is too long. I picked up a shorter one but I'm afraid it might be a little too short. Won't know until we pour fluid in and fire it up to see if it leaks. The tcase is installed and looking just fine. Nice part is, it has a fixed rear yoke and both front and rear are 32 spline. Oh and the speedo cable screws right on.

The tcase:






No room for the exhaust on the passenger side anymore.



Exhaust will have to go down the DS. Bye bye gas tank!



Checking front drive shaft clearance to the cross member. All good!



I had this DS from another vehicle that I might just use. It'll need to be shorted and get a 1350 yoke for the D44 but it's still cheaper than new stuff.

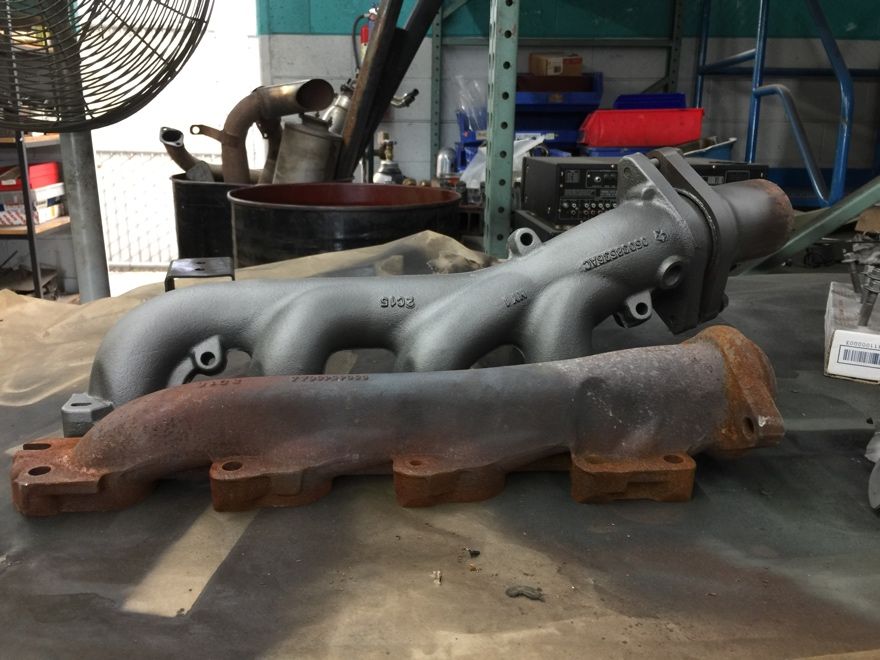

Now to get the exhaust manifolds installed. This is the difference between the stock truck "log" manifold and the SRT8 manifold.

__________________
1974 Cherokee S. It's driving but needs more work. As usual!
Reply With Quote
  #253
Old 06-13-2017, 06:04 PM
MJMadness MJMadness is offline
232 I6

Join Date: Sep 26, 2005
Posts: 98
Quote:
Originally Posted by bkilby
So, I got the NP241D in on Friday and found out right away that the input gear is too long. I picked up a shorter one but I'm afraid it might be a little too short. Won't know until we pour fluid in and fire it up to see if it leaks. The tcase is installed and looking just fine. Nice part is, it has a fixed rear yoke and both front and rear are 32 spline. Oh and the speedo cable screws right on.

What Dodge application comes with a fixed rear yoke from factory?


If your need something between a short and long input and have trouble finding one, you could probably run the long input with a clocking ring to shim it a bit. There's both 3/8" and 7/8" thick clocking rings that I've found available. If you can clock the tcase some without it cause nightmares, that is.
Reply With Quote
  #254
Old 06-14-2017, 04:36 AM
bkilby's Avatar
bkilby bkilby is offline
350 Buick

Join Date: Jan 10, 2016
Location: Burbank Ca.
Posts: 901
Quote:
Originally Posted by MJMadness
What Dodge application comes with a fixed rear yoke from factory?


If your need something between a short and long input and have trouble finding one, you could probably run the long input with a clocking ring to shim it a bit. There's both 3/8" and 7/8" thick clocking rings that I've found available. If you can clock the tcase some without it cause nightmares, that is.

Good question! If the tag on the tcase hasn't been changed out, the P/N is 53006100. I'm guessing a 1989 Dodge 3/4 or 1 ton truck, maybe even a diesel. Some have the slip yoke, some have the fixed yoke. By finding one with the factory fixed yoke, you save yourself $440 by not having to buy JB Conversions SYE kit. And the front yoke is a 1350 flange style yoke that fit that 2013 drive shaft perfectly.

I thought about the clocking ring but I can't really use one. For a spacer yes, but for a clocking ring no. I can't clock it up any higher without beating the floor in. I kinda skipped to the chase when writing that stuff today. What I actually did was, I took the long gear to a machine shop around the corner and had them machine the inner splines away about 1/2" deep. I thought I had enough room for the long gear, but I ran out of splines on the tranny output shaft. Well, we were off about 1/8" and it still wouldn't bolt up correctly. I think I need to machine the whole gear down around a 1/4" and maybe the inner splines a little more. This was late Friday after noon and once I realized the problem, they were closing for the weekend and I wanted this done. That's why I bought the new gear. Also, the machine shop guy just moved out of one building and is kinda busy prepping it for the new tenant.
__________________
1974 Cherokee S. It's driving but needs more work. As usual!
Reply With Quote
  #255
Old 06-14-2017, 04:42 PM
bkilby's Avatar
bkilby bkilby is offline
350 Buick

Join Date: Jan 10, 2016
Location: Burbank Ca.
Posts: 901
Hey look, it fits! The engine can't possibly move that much right? Time to slice it up.

__________________
1974 Cherokee S. It's driving but needs more work. As usual!
Reply With Quote
  #256
Old 06-16-2017, 11:29 AM
bkilby's Avatar
bkilby bkilby is offline
350 Buick

Join Date: Jan 10, 2016
Location: Burbank Ca.
Posts: 901
So, anyone here ever build their own gas tank? I'm curious to see what their internal baffle looks like.
__________________
1974 Cherokee S. It's driving but needs more work. As usual!
Reply With Quote
  #257
Old 06-17-2017, 11:20 PM
bkilby's Avatar
bkilby bkilby is offline
350 Buick

Join Date: Jan 10, 2016
Location: Burbank Ca.
Posts: 901
I went to the junkyard the other day to get another heater box in case I screwed mine up. Got it cheap too. I did a little cutting on it to see just how far I can go before the heater core becomes the limiting factor. Let's just say that heater core is tall.

New (used) heater box.

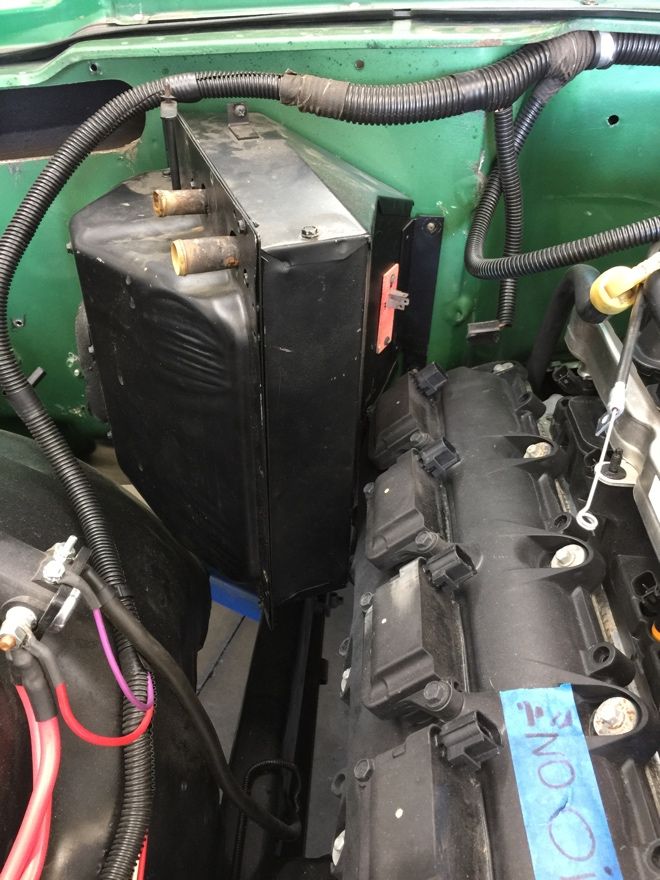

I've cut as much of the box away as possible. The heater core is less than 1/8" from the edge.





I wen to a local radiator shop and he had a core that wasn't so tall. The bottom of the tape represents that core. It's still a little too close for my liking.



So now, I have a new heater core on order. It's 6" wide and 6" tall. The core should sit right about where my cut is now, just above the tape. Once I cut the box more, I hope to have enough clearance to make this work. Fingers crossed!
__________________
1974 Cherokee S. It's driving but needs more work. As usual!

Last edited by bkilby : 07-15-2017 at 05:12 PM.
Reply With Quote
  #258
Old 06-23-2017, 04:57 PM
bkilby's Avatar
bkilby bkilby is offline
350 Buick

Join Date: Jan 10, 2016
Location: Burbank Ca.
Posts: 901
Been a busy week but finally got time to work on the heater box more. Half done, half to go.

First, the new heater core.



The beginning of cutting the box up.



Clamp city!



Done with this half...for now.



__________________
1974 Cherokee S. It's driving but needs more work. As usual!

Last edited by bkilby : 07-15-2017 at 05:27 PM.
Reply With Quote
  #259
Old 06-24-2017, 11:34 AM
63J200atLSU's Avatar
63J200atLSU 63J200atLSU is offline
327 Rambler

Join Date: Jan 15, 2016
Location: Baton Rouge, LA
Posts: 535
You're doing king great work man. Love your rig and can't wait to see more of this progress!
__________________
'63 J200 Resto-mod in progress
(http://www.ifsja.org/forums/vb/showthread.php?t=178651)

If all goes well, we can toast to accidental successes.

I'm convinced I'm just too dumb to know that I can't restore this old truck...
Reply With Quote
  #260
Old 06-24-2017, 12:01 PM
rang-a-stang's Avatar
rang-a-stang rang-a-stang is offline
Administrator

Join Date: Oct 31, 2016
Location: Camarillo, CA
Posts: 3,375
wow! It looks fantastic!
__________________
79 Cherokee Chief
(Cherokee Build Thread)
11 Nissan Pathfinder Silver Edition 4x4
09 Mazdaspeed3 Grand Touring
Reply With Quote
Reply


Thread Tools Search this Thread
Search this Thread:

Advanced Search
Display Modes

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

vB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Forum Jump

Similar Threads
Thread Thread Starter Forum Replies Last Post
What's a SUPER Chief - OLD TOPIC MESS UP...REPLY HERE! testuser General FSJ Tech 10 12-06-2015 11:10 AM
Difference between chief and chief "s"? rentalrider General FSJ Discussion 2 04-22-2011 03:33 PM
bought a Chief - going to restore it. what color? sportsidedan General FSJ Discussion 27 10-27-2008 03:30 PM
1977 Cherokee Chief - Lea Adams Dome Cherokees 0 08-21-2005 11:45 AM
Mission: Restore 1977 Chief Boogie77 General FSJ Tech 1 02-13-2003 08:30 AM


All times are GMT -6. The time now is 12:51 AM.


Powered by vBulletin Version 3.5.4
Copyright ©2000 - 2020, Jelsoft Enterprises Ltd.
corner corner
