Classic Warn Winch Bumper

WTB old school Warn 3 piece bolt together winch bumper. I need FSJ frame brackets too. Could also use a 1 piece bumper but still need the frame brackets. Don't care if it's painted or chrome. This style.














__________________
1974 Cherokee S. It's driving but needs more work. As usual!

Last edited by bkilby : 02-16-2020 at 10:55 AM.
Reply With Quote
  #2
Old 02-12-2020, 10:16 PM
bkilby's Avatar
bkilby bkilby is offline
350 Buick

Join Date: Jan 10, 2016
Location: Burbank Ca.
Posts: 878
Nobody? I'm gonna have to shop the FSJ junk yards across the nation it seems. Lol.
__________________
1974 Cherokee S. It's driving but needs more work. As usual!
Reply With Quote
  #3
Old 02-13-2020, 05:42 PM
Banchee's Avatar
Banchee Banchee is offline
232 I6

Join Date: Mar 20, 2009
Location: So. California
Posts: 162
The only thing I can help with is a pair of the top steel plates that bolt to the top of the bumper and go to the grill, and possibly a new non-roller fairlead.

It's been a long time since I have looked at them, but they are either brand new or in excellent condition and have always been stored inside.

If you are interested I'll dig them out the next time I go to my shop.
__________________
91 XJ Cherokee Limited
99 Dodge Ram V10 4X4 (This thing will pull a house, but won't pass a gas station)
2010 Grand Cherokee (Hemi)
2014 Dodge Avenger SRT6 Blacktop
Reply With Quote
  #4
Old 02-13-2020, 10:52 PM
bkilby's Avatar
bkilby bkilby is offline
350 Buick

Join Date: Jan 10, 2016
Location: Burbank Ca.
Posts: 878
I appreciate that Banchee but I don't know if those plates will help right now. I'm really needing the frame brackets. The original bumper would be a great help too. Like, the whole thing. I need to match the parts up to a CAD drawing.
__________________
1974 Cherokee S. It's driving but needs more work. As usual!
Reply With Quote
  #5
Old 02-14-2020, 09:17 AM
babywag's Avatar
babywag babywag is online now
out of order

Join Date: Jun 08, 2005
Location: Land of froot loops and cukcoo-nuts, CA
Posts: 9,614
You may try reaching out to Tad...iirc he was making/selling beefy bumper brackets.

On the 77 I had way back when(with a factory warn setup) the stock brackets were pretty wimpy.
Tagged a full size chevy van one winter ~15MPH and the whole driver side corner of bumper just caved into the fender.
We were able to pull it back out using a chain & tree.

Metal Twister built a very nice bumper as well...might try him as well?
http://www.ifsja.org/forums/vb/showthread.php?t=109731
__________________
Tony

Last edited by babywag : 02-14-2020 at 09:31 AM.
Reply With Quote
  #6
Old 02-15-2020, 12:28 AM
bkilby's Avatar
bkilby bkilby is offline
350 Buick

Join Date: Jan 10, 2016
Location: Burbank Ca.
Posts: 878
Thanks Tony but I'm looking for the Warn bumper specifically.
__________________
1974 Cherokee S. It's driving but needs more work. As usual!
Reply With Quote
  #7
Old 02-15-2020, 11:35 PM
mwood65's Avatar
mwood65 mwood65 is offline
258 I6

Join Date: Jul 17, 2017
Location: Arizona
Posts: 345

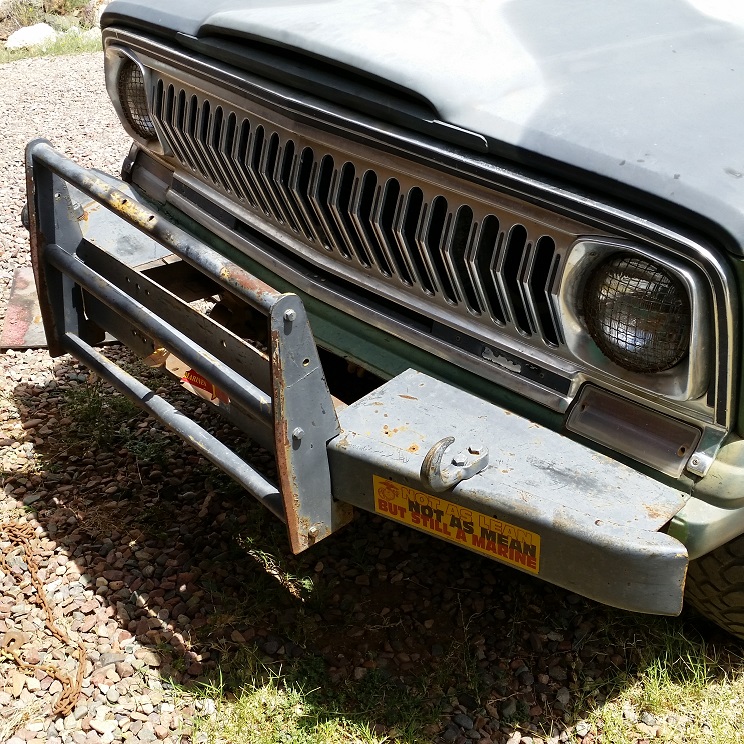

I have one I want to take off and use my 3 piece I have on there. Mine looks just like your pictures except someone bolted a brush guard on the center of it. It don't look quite that rough now thanks to a little sanding & black spray paint.



Reply With Quote
  #8
Old 02-16-2020, 06:12 AM
78 WIDETRAC's Avatar
78 WIDETRAC 78 WIDETRAC is offline
258 I6

Join Date: Aug 19, 2003
Location: Portland, Or
Posts: 472
Being ex military. that bumper sticker cracks me up. So true.
Reply With Quote
  #9
Old 02-16-2020, 11:08 AM
bkilby's Avatar
bkilby bkilby is offline
350 Buick

Join Date: Jan 10, 2016
Location: Burbank Ca.
Posts: 878
Quote:
Originally Posted by mwood65
I have one I want to take off and use my 3 piece I have on there.




Got any more pics mwood? You can PM if you prefer. Or I can send you my email or phone for text...
__________________
1974 Cherokee S. It's driving but needs more work. As usual!
Reply With Quote
  #10
Old 02-16-2020, 11:21 AM
bkilby's Avatar
bkilby bkilby is offline
350 Buick

Join Date: Jan 10, 2016
Location: Burbank Ca.
Posts: 878
I guess I should explain a bit more of why I'm looking for this bumper. I wasn't going to say anything yet but....


I have the drawings from Warn for this 3 piece bolt together bumper. They aren't CAD drawings but I am in the process of converting the files to CAD. But as you can see from the pics in the first post, Warn made slight changes over the years. For example, the Jeep and one Chevy uses a single bolt in the front to bolt the end pieces to the main unit. One Chevy uses 3 bolts. These drawings have the single bolt version but yet the bumper Jeep sold was the 3 bolt version.









Also, Warn couldn't find the drawings for the brackets to bolt this bumper to a FSJ. Being that I can't just whip up CAD drawings off pictures from a computer, I need the brackets to create the drawings. No drawings, no brackets. No brackets, no bumper. Make sense?


Oh yeah, forgot to mention, this is for a possible production run of this old style bumper. Can't tell if a production runs is doable until I get farther along on the CAD drawings etc. So, look-a-like bumpers won't work. The bumper I'm looking for has to be a genuine Warn bumper with the frame brackets.
__________________
1974 Cherokee S. It's driving but needs more work. As usual!

Last edited by bkilby : 02-17-2020 at 06:31 PM.
Reply With Quote
  #11
Old 02-16-2020, 04:41 PM
asphaltrockdweller's Avatar
asphaltrockdweller asphaltrockdweller is offline
350 Buick

Join Date: Jul 09, 2009
Posts: 1,158
Well you know I'd be down for at least one, maybe two.
__________________
(Ristow) fram....that deserves a ratchet upside the head.
Reply With Quote
  #12
Old 02-16-2020, 09:49 PM
mwood65's Avatar
mwood65 mwood65 is offline
258 I6

Join Date: Jul 17, 2017
Location: Arizona
Posts: 345
Quote:
Originally Posted by 78 WIDETRAC
Being ex military. that bumper sticker cracks me up. So true.






I'm not as good as I once was.................


....................................but I'm as good once as I ever was
Reply With Quote
  #13
Old 02-17-2020, 01:41 PM
wylder wylder is offline
230 Tornado

Join Date: Jan 01, 2015
Location: Bay Area, CA
Posts: 14
Hey bkilby, we talked offline about a year ago. finally found a factory one piece bumper for our ‘82 J10, so now we’re ready to sell the Warn bumper it came with. There’s some slight damage to the pass side where the PO cut out a bolt or something, but the brackets look good. I thought I’d let you know before posting it for sale separately. I’m asking $300, buyer pays shipping.

Photos here:

https://goo.gl/photos/pBSvEF9Unt4Tweq77
Reply With Quote
  #14
Old 02-17-2020, 06:29 PM
bkilby's Avatar
bkilby bkilby is offline
350 Buick

Join Date: Jan 10, 2016
Location: Burbank Ca.
Posts: 878
Sounds good wylder! I'll get in touch with you about the details.
__________________
1974 Cherokee S. It's driving but needs more work. As usual!
Reply With Quote
  #15
Old 02-17-2020, 06:38 PM
bkilby's Avatar
bkilby bkilby is offline
350 Buick

Join Date: Jan 10, 2016
Location: Burbank Ca.
Posts: 878
I still had your email wylder so I sent you a message.
__________________
1974 Cherokee S. It's driving but needs more work. As usual!
Reply With Quote
  #16
Old 02-23-2020, 05:59 PM
bkilby's Avatar
bkilby bkilby is offline
350 Buick

Join Date: Jan 10, 2016
Location: Burbank Ca.
Posts: 878
Still looking for this bumper.
__________________
1974 Cherokee S. It's driving but needs more work. As usual!
Reply With Quote
