Thanks guys! I got to spend a few hours at the shop today messing with this box. Got the other side pretty much done. It's a lot of work. Assemble, measure, cut, re-assemble to double check your cut, disassemble, tack weld, re-assemble, check everything again, take it apart and weld. About 30 times. Lol!

I decided to eliminate the manual door in the box. All it does is direct air either into the core or around it. It still hits the core even going around. I ended up removing the door and it's bracket and welded the hole shut for the air bypass. Reason being, there's another vacuum actuated door on the firewall so if you don't hit the heater button, the door stays shut. No hot air coming inside when it's not wanted. Also, I plan on running a 12V valve on the heater hose to stop the water from entering the heater core unless I tell it to. Make sense? Anyhow, not a lot of pics today. Was busy welding. But here's a quick test fit after today's work.

__________________
1974 Cherokee S. It's driving but needs more work. As usual!

Last edited by bkilby : 07-13-2017 at 07:45 AM.
Reply With Quote
  #262
Old 06-24-2017, 11:59 PM
63J200atLSU's Avatar
63J200atLSU 63J200atLSU is offline
327 Rambler

Join Date: Jan 15, 2016
Location: Baton Rouge, LA
Posts: 526
Quote:
Originally Posted by bkilby
Thanks guys! I got to spend a few hours at the shop today messing with this box. Got the other side pretty much done. It's a lot of work. Assemble, measure, cut, re-assemble to double check your cut, disassemble, tack weld, re-assemble, check everything again, take it apart and weld. About 30 times. Lol!

I decided to eliminate the manual door in the box. All it does is direct air either into the core or around it. It still hits the core even going around. I ended up removing the door and it's bracket and welded the hole shut for the air bypass. Reason being, there's another vacuum actuated door on the firewall so if you don't hit the heater button, the door stays shut. No hot air coming inside when it's not wanted. Also, I plan on running a 12V valve on the heater hose to stop the water from entering the heater core unless I tell it to. Make sense? Anyhow, not a lot of pics today. Was busy welding. But here's a quick test fit after today's work.\


I like the idea of eliminating the flap... This may go into my future mods list... keep it up Brad!
__________________
'63 J200 Resto-mod in progress
(http://www.ifsja.org/forums/vb/showthread.php?t=178651)

If all goes well, we can toast to accidental successes.

I'm convinced I'm just too dumb to know that I can't restore this old truck...
Reply With Quote
  #263
Old 06-25-2017, 09:42 AM
bkilby's Avatar
bkilby bkilby is offline
350 Buick

Join Date: Jan 10, 2016
Location: Burbank Ca.
Posts: 831
Thanks! With all that welding on the thin factory steel, I kinda warped the plate that holds the heater core. You can't see it in the pic but it's there. I might have to redo the lower portion of that plate so it's not as warped as it is. In hind sight, I could have done it better and easier had I known in advance what the plate was going to turn out like. Live and learn. I still have a spare that I can mod, and I just might. It would be welding in one plate instead of 3.
__________________
1974 Cherokee S. It's driving but needs more work. As usual!
Reply With Quote
  #264
Old 06-25-2017, 11:44 AM
63J200atLSU's Avatar
63J200atLSU 63J200atLSU is offline
327 Rambler

Join Date: Jan 15, 2016
Location: Baton Rouge, LA
Posts: 526
Quote:
Originally Posted by bkilby
Thanks! With all that welding on the thin factory steel, I kinda warped the plate that holds the heater core. You can't see it in the pic but it's there. I might have to redo the lower portion of that plate so it's not as warped as it is. In hind sight, I could have done it better and easier had I known in advance what the plate was going to turn out like. Live and learn. I still have a spare that I can mod, and I just might. It would be welding in one plate instead of 3.

Worst case scenario, there seem to be plenty of heater boxes for FSJ's and I don't think they changed that much over the years...
__________________
'63 J200 Resto-mod in progress
(http://www.ifsja.org/forums/vb/showthread.php?t=178651)

If all goes well, we can toast to accidental successes.

I'm convinced I'm just too dumb to know that I can't restore this old truck...
Reply With Quote
  #265
Old 06-25-2017, 11:59 AM
bkilby's Avatar
bkilby bkilby is offline
350 Buick

Join Date: Jan 10, 2016
Location: Burbank Ca.
Posts: 831
True. I think I'm ok though. I still have the spare.

Gotta start shopping for a radiator now...
__________________
1974 Cherokee S. It's driving but needs more work. As usual!
Reply With Quote
  #266
Old 06-26-2017, 04:38 PM
bkilby's Avatar
bkilby bkilby is offline
350 Buick

Join Date: Jan 10, 2016
Location: Burbank Ca.
Posts: 831
So last week, I called a buddy to get his opinion about building a gas tank. After talking for a few minutes, he asked what I was putting it in. I told him my FSJ and he says well, guess what I have sitting in my garage... he gave such a smoking deal, I couldn't pass it up.

So, looks like I'm gonna make an attempt to make this tank work. Nothing a little cutting and welding can't fix. And this tank has never been used.









Now back to the heater box!
__________________
1974 Cherokee S. It's driving but needs more work. As usual!

Last edited by bkilby : 07-13-2017 at 07:51 AM.
Reply With Quote
  #267
Old 06-26-2017, 07:35 PM
babywag's Avatar
babywag babywag is offline
out of order

Join Date: Jun 08, 2005
Location: Land of froot loops and cukcoo-nuts, CA
Posts: 9,458
honestly I'd look @ an s10 blazer tank, already setup for efi and fits in back pretty good.
__________________
Tony
Reply With Quote
  #268
Old 06-26-2017, 08:04 PM
bkilby's Avatar
bkilby bkilby is offline
350 Buick

Join Date: Jan 10, 2016
Location: Burbank Ca.
Posts: 831
I've looked at those but they hang too low for my liking. I think this one will sit flush with the bottom of the frame rail. But then again, I haven't held it up to the Jeep yet. I'll find out tomorrow.
__________________
1974 Cherokee S. It's driving but needs more work. As usual!
Reply With Quote
  #269
Old 06-26-2017, 09:21 PM
asphaltrockdweller's Avatar
asphaltrockdweller asphaltrockdweller is offline
350 Buick

Join Date: Jul 09, 2009
Posts: 1,097
I think that is cool???

I mean a VIRGIN Trail Blazer tank to cut up, and weld............................
HAHA It will be cool. Someone had to say that, and might as well be me.
__________________
(Ristow) fram....that deserves a ratchet upside the head.
Reply With Quote
  #270
Old 06-27-2017, 04:19 AM
bkilby's Avatar
bkilby bkilby is offline
350 Buick

Join Date: Jan 10, 2016
Location: Burbank Ca.
Posts: 831
What's wrong with cutting up a brand new tank?
That front angle iron mount isn't gonna work in my rig so I'll have to do something there. If I go with an in tank pump, I don't think it'll fit in that puny hole made for the sender. So yeah, cutting and welding....
__________________
1974 Cherokee S. It's driving but needs more work. As usual!
Reply With Quote
  #271
Old 06-27-2017, 05:16 PM
bkilby's Avatar
bkilby bkilby is offline
350 Buick

Join Date: Jan 10, 2016
Location: Burbank Ca.
Posts: 831
Finished with the heater box. Well, except the big gasket to the blower motor. Now on to the gas tank.







__________________
1974 Cherokee S. It's driving but needs more work. As usual!

Last edited by bkilby : 07-15-2017 at 05:17 PM.
Reply With Quote
  #272
Old 06-27-2017, 05:55 PM
bkilby's Avatar
bkilby bkilby is offline
350 Buick

Join Date: Jan 10, 2016
Location: Burbank Ca.
Posts: 831
And......I spoke too soon. Went to install it and broke a stud off. Looks like I have to pull the junk from under the dash now.
__________________
1974 Cherokee S. It's driving but needs more work. As usual!
Reply With Quote
  #273
Old 06-27-2017, 06:39 PM
Nikkormat Nikkormat is offline
232 I6

Join Date: Jan 03, 2015
Location: Evergreen, CO
Posts: 143
You lucky SOB. That appears to even be a trailblazer tank with the big inlet for 1975 and older!
Reply With Quote
  #274
Old 06-27-2017, 06:50 PM
bkilby's Avatar
bkilby bkilby is offline
350 Buick

Join Date: Jan 10, 2016
Location: Burbank Ca.
Posts: 831
Well I am a lucky SOB no matter the size but yeah, 1.75" hose.
__________________
1974 Cherokee S. It's driving but needs more work. As usual!
Reply With Quote
  #275
Old 06-27-2017, 11:45 PM
rang-a-stang's Avatar
rang-a-stang rang-a-stang is offline
360 AMC

Join Date: Oct 31, 2016
Location: Camarillo, CA
Posts: 2,859
Quote:
Originally Posted by bkilby
And......I spoke too soon. Went to install it and broke a stud off. Looks like I have to pull the junk from under the dash now.

DANG! That sucks! So sorry to hear that!
__________________
79 Cherokee Chief, barely runs
(Cherokee Build Thread)
11 Nissan Pathfinder Silver Edition 4x4
09 Mazdaspeed3 Grand Touring
Reply With Quote
  #276
Old 06-28-2017, 07:12 AM
bkilby's Avatar
bkilby bkilby is offline
350 Buick

Join Date: Jan 10, 2016
Location: Burbank Ca.
Posts: 831
Yeah, it does. Nice part is there's no freon or antifreeze to deal with yet.

I went to test fit the gas tank but forgot about an exhaust hanger that needs to get whacked. Today....
__________________
1974 Cherokee S. It's driving but needs more work. As usual!
Reply With Quote
  #277
Old 07-03-2017, 04:58 PM
bkilby's Avatar
bkilby bkilby is offline
350 Buick

Join Date: Jan 10, 2016
Location: Burbank Ca.
Posts: 831

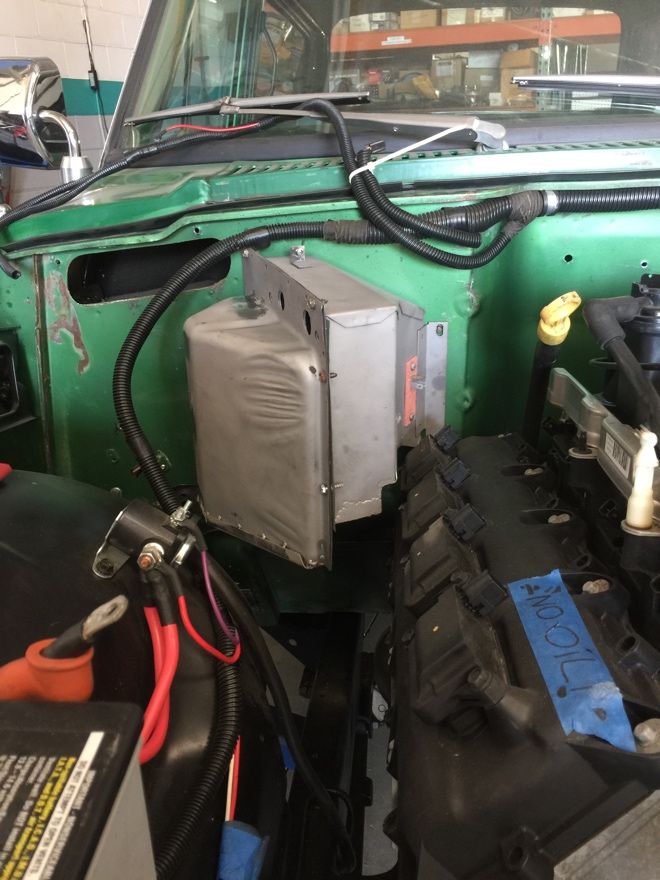

Computer and wire harness came in a couple of days ago. This is some nicely made stuff. Hotwireauto.com for those interested.
