  #61
Old 03-29-2016, 12:09 PM
SJTD SJTD is offline
350 Buick

Join Date: Apr 26, 2012
Location: Lompoc and Sunland, CA
Posts: 1,288
Trimmed the passenger side to about 1” to add a horizontal plenum. Tried forming a strip of ABS to the final shape. It’ll be easier to make it in two pieces.





Made a form the same size as the defroster outlet. Heated and formed the first part of the curve and stapled it to the form.





Heated about an inch at a time and rolled it around the form leaving the left part tangent where it’ll attach to the duct.





Test fit.





Test fit in the dash.





Formed a V to attach the other side of the plenum to the duct.





Riveted the V to the duct. Used some urethane windshield sealant between the pieces.





Finished. Used ABS cement between the V and the plenum and riveted the other side. Glued a flat piece on the left end.









In place in the dash with the hose installed.
__________________
Sic friatur crustulum

'84 GW with Nissan SD33T, early Chev NV4500, 300, narrowed Ford reverse 44, narrowed Ford 60, SOA/reversed shackle in fornt, lowered mount/flipped shackle in rear.
Reply With Quote
  #62
Old 04-12-2016, 12:41 PM
SJTD SJTD is offline
350 Buick

Join Date: Apr 26, 2012
Location: Lompoc and Sunland, CA
Posts: 1,288
Been out of town for a week. Finished the driver side before I left.






Just have to attach the new to the old and fill the gaps.
__________________
Sic friatur crustulum

'84 GW with Nissan SD33T, early Chev NV4500, 300, narrowed Ford reverse 44, narrowed Ford 60, SOA/reversed shackle in fornt, lowered mount/flipped shackle in rear.
Reply With Quote
  #63
Old 05-22-2016, 10:04 PM
Randyzzz's Avatar
Randyzzz Randyzzz is offline
258 I6

Join Date: Mar 03, 2008
Location: Redmond, OR
Posts: 345
Nice tech tip! I'll be doing the same thing later this year, good to see your take on the problem.
__________________
Randy S.
It's not what you Buy, it's what you Build.
1987 J20
1966 Waggy
1968 Waggy
1970 Waggy
1972 Waggy

1982 Scrambler
1981 Scrambler

www.oldsoulsretros.com
Reply With Quote
  #64
Old 06-01-2016, 05:24 PM
SJTD SJTD is offline
350 Buick

Join Date: Apr 26, 2012
Location: Lompoc and Sunland, CA
Posts: 1,288
Thanks.

I've seen several threads where guys have used the Vintage Air unit but only pichers of the thing hanging on the firewall. No pics of the ducting.

I'd like to see how others have done it.
__________________
Sic friatur crustulum

'84 GW with Nissan SD33T, early Chev NV4500, 300, narrowed Ford reverse 44, narrowed Ford 60, SOA/reversed shackle in fornt, lowered mount/flipped shackle in rear.
Reply With Quote
  #65
Old 06-01-2016, 08:09 PM
serehill's Avatar
serehill serehill is offline
Gone,Never Forgotten.

Join Date: Nov 22, 2009
Location: Mesquite Texas
Posts: 8,622
Yeah i have to agree really cool

Where did you get the material ?
__________________

80 Cherokee
360 ci 727 with
Comp cams 270 h
NP208
Edlebrock performer intake
Holley 4180
Msd total multi spark.
4" rusty's springs
Member, FSJ Prissy Restoration Association

If you can't make it better why waste your time. No use repeating the orignal mistakes. I'm to old to push it that's why.
Reply With Quote
  #66
Old 06-02-2016, 08:13 AM
jeepman1's Avatar
jeepman1 jeepman1 is offline
258 I6

Join Date: Jul 22, 2015
Location: Cortez fl
Posts: 416
Quote:
Originally Posted by the original Honcho
x2
x3
__________________
: 98 9er
'83 Honcho j10
'12 Liberty Ltd.. wifes
'19 Chaparral H2o Dlx sport 21
Reply With Quote
  #67
Old 06-02-2016, 08:15 AM
SJTD SJTD is offline
350 Buick

Join Date: Apr 26, 2012
Location: Lompoc and Sunland, CA
Posts: 1,288
I got the ABS on Amazon.

Not the cheapest source but more convenient than buying 4 x 8 sheets locally.
__________________
Sic friatur crustulum

'84 GW with Nissan SD33T, early Chev NV4500, 300, narrowed Ford reverse 44, narrowed Ford 60, SOA/reversed shackle in fornt, lowered mount/flipped shackle in rear.
Reply With Quote
  #68
Old 06-02-2016, 08:18 AM
jeepman1's Avatar
jeepman1 jeepman1 is offline
258 I6

Join Date: Jul 22, 2015
Location: Cortez fl
Posts: 416
Nice spring mounts, in your free time, make about 20 sets.. I'm sure they would find good homes
__________________
: 98 9er
'83 Honcho j10
'12 Liberty Ltd.. wifes
'19 Chaparral H2o Dlx sport 21
Reply With Quote
  #69
Old 03-12-2017, 01:30 PM
SJTD SJTD is offline
350 Buick

Join Date: Apr 26, 2012
Location: Lompoc and Sunland, CA
Posts: 1,288
Been a while. Layed off , transfer to Pueblo not happening due to layoffs , sold Lompoc house , payed off other house with profit .

After trying several photo hosting sites I subscribed to PB. Much faster due to no adds. Nothing wrong with paying for something I use.

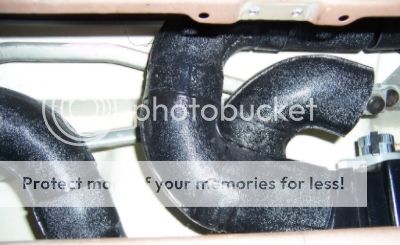

Been working on the AC ducting. Don't want to use the vacuum cleaner hose they provide so been making ducts out of the ABS.

2" Drain pipe has just a little smaller OD than the hose ID when it's stretched tight so I used it for a form.


Driver side outer end



Inner end



Formed the ABS with a heat gun and gloves



Inside of same bend trimmed



Trim fixture. Really fast for plain elbows, didn't work for the ends



Gluing the halves together. The screw has washer on the inside also to align the edges



Driver side parts finished. All joints have a patch over them or are overlapped. Not relying on glued butt joints.



Finished driver side. This joint will have a piece of the vacuum hose for flex and vibration isolation. Same for one joint on each duct


Similar process for the others. Had to do some reforming with the heat gun here and there due to interference with wipers and adjacent ducts but overall with the smooth interior that's actually bigger than the hose when relaxed I think I'm better off.
__________________
Sic friatur crustulum

'84 GW with Nissan SD33T, early Chev NV4500, 300, narrowed Ford reverse 44, narrowed Ford 60, SOA/reversed shackle in fornt, lowered mount/flipped shackle in rear.
Reply With Quote
  #70
Old 03-14-2017, 12:03 PM
SJTD SJTD is offline
350 Buick

Join Date: Apr 26, 2012
Location: Lompoc and Sunland, CA
Posts: 1,288
Stock dash won't work. With the AC and ducting there's no room for the stereo or glove box. I also want a 2 DIN or larger display and need center AC outlets. Don't really want knee coolers like the stock system.

Rather than trying to work around the stock ashtray and clock opening and trying to fit a tablet in the center I figured it'd be easier to start fresh so I put in a 1/8" x 1/2" bar across the bottom and a piece of sheet for a clean start.



Filled in the sides so they are flat. Going to have a storage space beneath the screen.



Made the frame for the screen



Test fit of the screen



The cutouts for the AC vents and screen. Put in piece of 1/4" tubing for the frame of the cubby hole.



The front of the cubby hole installed. It'll be maybe 3" deep made out of ABS.



Ducting and dash pretty much finished. Driver side defrost runs diagonally across the center opening. Haven't decided if I'm going use the vacuum hose or make a duct.




The drive side defroster I made didn't fit so I ended up modifying the stock one similar to the passenger side.
__________________
Sic friatur crustulum

'84 GW with Nissan SD33T, early Chev NV4500, 300, narrowed Ford reverse 44, narrowed Ford 60, SOA/reversed shackle in fornt, lowered mount/flipped shackle in rear.
Reply With Quote
  #71
Old 03-15-2017, 08:13 PM
JPSwapMohn's Avatar
JPSwapMohn JPSwapMohn is offline
350 Buick

Join Date: May 01, 2004
Location: VA, NC, wherever I'm sent..
Posts: 1,454
Subscribed!

You are doing what i thought would not work.. using the older dash and updating it. I love it! I assume this would not work with the original HVAC instead of the Vintage? Too bulky, or is the Vintage just better output? Vintage comes with it's own control panel, correct? where are you mounting it? And what about the heater? (or does the Vintage do both?

Sucks that stereo and such won't fit center section. You could bulge that section out a bit, blend it in and maybe get stereo in there?

Are you going to make the hole on the passenger side where the "speaker grill" goes into a glovebox? I think a hinged panel there that is same size with the old grill on it would be very cool.

Very envious of your skills and perseverance! So many of these full-on builds get set aside and never revived.

Any issues with the foam sprayed in the roof over time? The headliner came out great as well and I am sure the trim and such will hold it up just fine.

Thank you for linking to my question thread!
b
__________________
One day I will wake up and realize that my jeep is complete...one day, I just know it.

88Wag, LT1/4L60E/NP242, F150 fuel cell, discs, Aussie rear, LDS front, 4.10s
http://imgbox.com/g/rNuIasKYrS
95YJ, STaK 300, D44's, SOA, ARB's, 4.56s, Bilsteins, 35" KM2's
50 CJ3A
77 J-10, 360/T-18/D20, SOLD
Reply With Quote
  #72
Old 03-15-2017, 10:56 PM
SJTD SJTD is offline
350 Buick

Join Date: Apr 26, 2012
Location: Lompoc and Sunland, CA
Posts: 1,288
The VA system is heat/air/dehumidified defrost. Only bad thing is there's no fresh air inlet but the passenger vent is right down there. I'm considering ducting it directly into the AC inlet.

I like how the center turned out once I decided to take the plunge except it looks like a face. I think the Android will be better than a two DIN stereo system for nav. There are stereo systems that can be controlled by Android devices but I think I'm just going to mount the removable faceplate from a single DIN below the cubby. I'm reading that they can be mounted remotely. I don't need a CD player.

Yeah, the beeg hole on the passenger side will be the glovebox.

No issues with the foam. No lingering smell.
__________________
Sic friatur crustulum

'84 GW with Nissan SD33T, early Chev NV4500, 300, narrowed Ford reverse 44, narrowed Ford 60, SOA/reversed shackle in fornt, lowered mount/flipped shackle in rear.

Last edited by SJTD : 03-15-2017 at 11:01 PM.
Reply With Quote
  #73
Old 03-16-2017, 11:01 AM
Kaiserjeeps's Avatar
Kaiserjeeps Kaiserjeeps is offline
304 AMC

Join Date: Oct 02, 2002
Location: Mooseville Northern Idaho
Posts: 2,218
What a completely awesome build! Glad to see it surface.
__________________
------------------------------------
Am I done yet?

Most users ever online was 656, 06-30-2007 at 09:50 PM.
I was there! Still waiting for my Tee shirt...

1969 1414X Wag,
1970 and 71 project J trucks
1970 Wagoneer Not Sadie
1953 Willy's wagon
1983 FJ60 wagon
Reply With Quote
  #74
Old 03-16-2017, 11:29 AM
Frank Ziebert's Avatar
Frank Ziebert Frank Ziebert is offline
327 Rambler

Join Date: Dec 04, 2016
Location: Sisters, OR
Posts: 627
Just when I think I have my project all planned out in my head I see another awsome bunch of awsome ideas. Thanks a lot!

Great work BTW.
Reply With Quote
  #75
Old 04-26-2017, 09:07 PM
SJTD SJTD is offline
350 Buick

Join Date: Apr 26, 2012
Location: Lompoc and Sunland, CA
Posts: 1,288
Thanks guys, considering the source that's high praise.

Worked on converting the auto column to manual. Didn't want to leave the auto stuff in there. After I was well along I found out an XJ manual column was pretty much a bolt it. Oh well, save a few bucks.

One of the first things I did was tack this nut plate in place. It's what the bearing/tilt assembly bolts to and I'm pretty sure it won't need to be loose anymore. Even if it does it was worth tacking since I don't think I exagerate when I say I had to install/remove the tilt assembly twenty or more times in getting everything fitted up.



Had to cut this out. The shift tube that runs down the column is pressed into this and supports the shroud.



After attempting to fill the hole for the shift lever I decided I should weld in a plug rather than just fill it in. Dunno what I was thinking.



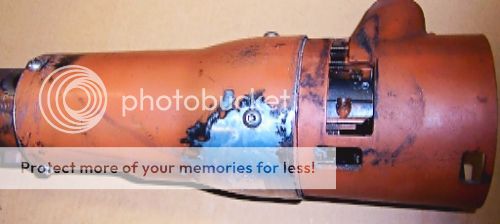

I hesitate to show this. I'm no great welder but really stink with aluminum. Fortunately it's just a plug, not structural.



Doesn't look so bad after some clean up. Turns out I had to remove a lot of material because I'm installing the shroud upside down to put the indicator at the bottom. I wasn't about to try welding up that notch right on the edge of the shroud.



Outside doesn't look too bad , especially with the glare. There's some pitting and lack of penetration but again it's just a plug. Nothing a little filler won't fix.



Then I dropped it. Had to make a mandrel to get it round again. This is actually the "face plate" I made for my lathe years ago. I drill and tap it wherever needed to mount oddball parts and reface it when it gets too full of holes. Or bevel the edge to straighten Jeep parts. Probably an inch thinner than it was when I made it.



Some of he shroud mounts. Since the shift tube is no longer supporting the shroud it bolts to these.



Can't believe I didn't get a picher of the shroud mounted but I'm not going to assemble it again untless I have to!

To mount it, two long screws come in from the top of the shroud at about 10 and 2 o'clock and go into the aluminum tilt mount block. Nuts on the inside backed against the shroud locate it. One screw on the bottom goes into that boss on the right in the above pic.

The lower end of the shroud bolts to three bosses, two of which are on the left.

The one on the far left is one of the four column mounts.
__________________
Sic friatur crustulum

'84 GW with Nissan SD33T, early Chev NV4500, 300, narrowed Ford reverse 44, narrowed Ford 60, SOA/reversed shackle in fornt, lowered mount/flipped shackle in rear.

Last edited by SJTD : 04-27-2017 at 10:00 AM.
Reply With Quote
  #76
Old 04-26-2017, 09:37 PM
Randyzzz's Avatar
Randyzzz Randyzzz is offline
258 I6

Join Date: Mar 03, 2008
Location: Redmond, OR
Posts: 345
Good work! You know, I think those XJ columns can fit almost anything. I have one in my 82 Scrambler.
__________________
Randy S.
It's not what you Buy, it's what you Build.
1987 J20
1966 Waggy
1968 Waggy
1970 Waggy
1972 Waggy

1982 Scrambler
1981 Scrambler

www.oldsoulsretros.com
Reply With Quote
  #77
Old 04-27-2017, 10:19 AM
SJTD SJTD is offline
350 Buick

Join Date: Apr 26, 2012
Location: Lompoc and Sunland, CA
Posts: 1,288
I did have one

__________________
Sic friatur crustulum

'84 GW with Nissan SD33T, early Chev NV4500, 300, narrowed Ford reverse 44, narrowed Ford 60, SOA/reversed shackle in fornt, lowered mount/flipped shackle in rear.
Reply With Quote
  #78
Old 05-01-2017, 01:08 PM
SJTD SJTD is offline
350 Buick

Join Date: Apr 26, 2012
Location: Lompoc and Sunland, CA
Posts: 1,288
Had to fill the big hole in the housing from the transmission indicator.


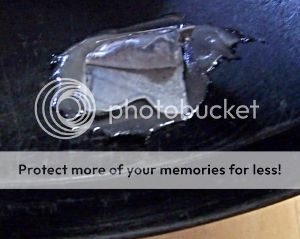

Made a backing from some thin aluminum. Sanded and used metal prep on the aluminum. Used a piece
of cardboard to hold the aluminum against the housing







Ready for primer



I had to check the bond of this JB Weld Plastic Bonder, it's a urethane. Hard to see in the picher but the adhesive failed, not the bond to the aluminum or plastic which seems to be Bakelite.
__________________
Sic friatur crustulum

'84 GW with Nissan SD33T, early Chev NV4500, 300, narrowed Ford reverse 44, narrowed Ford 60, SOA/reversed shackle in fornt, lowered mount/flipped shackle in rear.
Reply With Quote
  #79
Old 04-17-2018, 05:34 AM
Phils67's Avatar
Phils67 Phils67 is offline
232 I6

Join Date: Mar 24, 2018
Location: Cairo Ny
Posts: 30
Quote:
Originally Posted by SJTD
Stock dash won't work. With the AC and ducting there's no room for the stereo or glove box. I also want a 2 DIN or larger display and need center AC outlets. Don't really want knee coolers like the stock system.

Rather than trying to work around the stock ashtray and clock opening and trying to fit a tablet in the center I figured it'd be easier to start fresh so I put in a 1/8" x 1/2" bar across the bottom and a piece of sheet for a clean start.



Filled in the sides so they are flat. Going to have a storage space beneath the screen.



Made the frame for the screen



Test fit of the screen



The cutouts for the AC vents and screen. Put in piece of 1/4" tubing for the frame of the cubby hole.



The front of the cubby hole installed. It'll be maybe 3" deep made out of ABS.



Ducting and dash pretty much finished. Driver side defrost runs diagonally across the center opening. Haven't decided if I'm going use the vacuum hose or make a duct.




The drive side defroster I made didn't fit so I ended up modifying the stock one similar to the passenger side.

I know its been a while since the last post on this thread but i just came across it and would love to see the progress/finished pics of this dash! That looks bad a$$! You inspire me
Reply With Quote
  #80
Old 04-17-2018, 10:30 AM
SJTD SJTD is offline
350 Buick

Join Date: Apr 26, 2012
Location: Lompoc and Sunland, CA
Posts: 1,288
Thanks. Not much progress since the last post.

What happened was back in June my company was finished with layoffs and so was able to hire again. The Pueblo facility had to lay off a few people before they could proceed with hiring the 15+ people their agreement with the city required.

I had worked there for about two months back in spring of '16 and the manager offered me a job but it never happened due to the layoffs. They called me last June and my wife and I drove out there for an interview since the guy that I had worked for there before was gone and the new manager wanted to meet me.

We talked on the way home and decided not to do it. Would have done it a year earlier but maybe it would have been a bad decision; who knows? Was a great job for a guy like me. Design something then go out in the shop and make it. Write up a test procedure then go run it. I console myself by thinking that most of those 15 people they're hiring would be Techs and there'd be less hands on for the Engineers.

Anyway, the wife says if "if you're going to retire don't think you can just sit around and work on your Jeep" so I've been working on the house. Just as well as I had lost interest in it while trying to make a glove box door out of the right side grill.

Redid two bedrooms; removed the popcorn, removed carpeting, insulated three walls, replaced two windows, installed a door in place of a third and put in wood floors.

So now I'm working on it again before starting on a third bedroom and maybe the kitchen. Making a flat door for the glove box now.

Got some pics to post but I'm going to switch to Imgur. Buggers at PB autorenewed me at the original price and the pichers still seem to work. My CC on Paypal was expired but my daughter had used my account so her card was charged. I was looking forward to telling them to pound sand.

So that's my story. Thanks for the push, I'll post what I have soon.
__________________
Sic friatur crustulum

'84 GW with Nissan SD33T, early Chev NV4500, 300, narrowed Ford reverse 44, narrowed Ford 60, SOA/reversed shackle in fornt, lowered mount/flipped shackle in rear.

Last edited by SJTD : 04-17-2018 at 10:36 AM.
Reply With Quote
Reply


Thread Tools Search this Thread
Search this Thread:

Advanced Search
Display Modes

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

vB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Forum Jump


All times are GMT -6. The time now is 01:02 AM.


Powered by vBulletin Version 3.5.4
Copyright ©2000 - 2019, Jelsoft Enterprises Ltd.
corner corner
