  #1301
Old 06-02-2020, 06:41 PM
Full Size Jeeper's Avatar
Full Size Jeeper Full Size Jeeper is online now
304 AMC

Join Date: Jul 20, 2014
Location: Mandeville Louisiana
Posts: 2,244

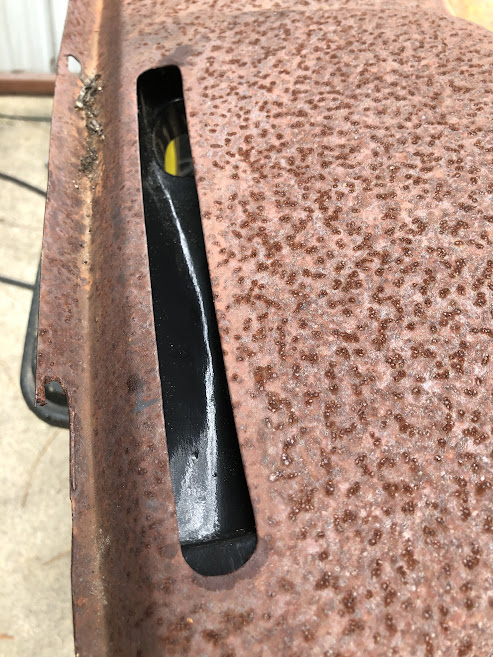

Looking from the top.
__________________
1978 Wagoneer

401/turbo 400 trans. Quadra-Trac BW1339 (with Low) 4" Rusty's lift with 31" Summit Mud Dawgs

Mods:
Fuel Tank, Red Holley Fuel Pump, Razor Grill (profile pic out dated), Rebuilt steering box
Reply With Quote
  #1302
Old 06-02-2020, 07:07 PM
bkilby's Avatar
bkilby bkilby is offline
350 Buick

Join Date: Jan 10, 2016
Location: Burbank Ca.
Posts: 915
Just curious here, but in our FSJ's, I've seen defrost ducts that point straight down and some that are angled toward the center of the dash. Are both version not usable or do you know?
__________________
1974 Cherokee S. It's driving but needs more work. As usual!
Reply With Quote
  #1303
Old 06-02-2020, 07:32 PM
Full Size Jeeper's Avatar
Full Size Jeeper Full Size Jeeper is online now
304 AMC

Join Date: Jul 20, 2014
Location: Mandeville Louisiana
Posts: 2,244
I 'll have to ask why he said I could not use them. I did look at the specs on the evaporator and the defrost port is 2 inches, the ones on our rigs are larger, so that might be part of it. Also the factory vents are a lot longer than the ones I'am using. So maybe they hit the Vintage Air evaporator are cause a problem with routing the duct work. Not sure yet, why.
__________________
1978 Wagoneer

401/turbo 400 trans. Quadra-Trac BW1339 (with Low) 4" Rusty's lift with 31" Summit Mud Dawgs

Mods:
Fuel Tank, Red Holley Fuel Pump, Razor Grill (profile pic out dated), Rebuilt steering box
Reply With Quote
  #1304
Old 06-03-2020, 06:52 AM
SOLSAKS's Avatar
SOLSAKS SOLSAKS is offline
350 Buick

Join Date: Jul 25, 2016
Location: Benson. NC
Posts: 1,069
nice A/C work full size.......

dave in NC
__________________
SOLSAKS - dave
1976 J-10 HONCHO Fleetside
1982 J-10 Fleetside
1988 grand wagoneer
2004 RUBICON jeep
Benson, NC
Reply With Quote
  #1305
Old 06-10-2020, 11:35 PM
Full Size Jeeper's Avatar
Full Size Jeeper Full Size Jeeper is online now
304 AMC

Join Date: Jul 20, 2014
Location: Mandeville Louisiana
Posts: 2,244
These are the hard lines from sonoraed for our AC.
__________________
1978 Wagoneer

401/turbo 400 trans. Quadra-Trac BW1339 (with Low) 4" Rusty's lift with 31" Summit Mud Dawgs

Mods:
Fuel Tank, Red Holley Fuel Pump, Razor Grill (profile pic out dated), Rebuilt steering box
Reply With Quote
  #1306
Old 06-10-2020, 11:36 PM
Full Size Jeeper's Avatar
Full Size Jeeper Full Size Jeeper is online now
304 AMC

Join Date: Jul 20, 2014
Location: Mandeville Louisiana
Posts: 2,244
__________________
1978 Wagoneer

401/turbo 400 trans. Quadra-Trac BW1339 (with Low) 4" Rusty's lift with 31" Summit Mud Dawgs

Mods:
Fuel Tank, Red Holley Fuel Pump, Razor Grill (profile pic out dated), Rebuilt steering box
Reply With Quote
  #1307
Old 06-10-2020, 11:39 PM
Full Size Jeeper's Avatar
Full Size Jeeper Full Size Jeeper is online now
304 AMC

Join Date: Jul 20, 2014
Location: Mandeville Louisiana
Posts: 2,244
Hard line off the top of the condenser.
__________________
1978 Wagoneer

401/turbo 400 trans. Quadra-Trac BW1339 (with Low) 4" Rusty's lift with 31" Summit Mud Dawgs

Mods:
Fuel Tank, Red Holley Fuel Pump, Razor Grill (profile pic out dated), Rebuilt steering box
Reply With Quote
  #1308
Old 06-10-2020, 11:53 PM
Full Size Jeeper's Avatar
Full Size Jeeper Full Size Jeeper is online now
304 AMC

Join Date: Jul 20, 2014
Location: Mandeville Louisiana
Posts: 2,244
This is the hard line that comes off the drier and passes through the valance as did the original AC lines.
__________________
1978 Wagoneer

401/turbo 400 trans. Quadra-Trac BW1339 (with Low) 4" Rusty's lift with 31" Summit Mud Dawgs

Mods:
Fuel Tank, Red Holley Fuel Pump, Razor Grill (profile pic out dated), Rebuilt steering box
Reply With Quote
  #1309
Old 06-10-2020, 11:58 PM
Full Size Jeeper's Avatar
Full Size Jeeper Full Size Jeeper is online now
304 AMC

Join Date: Jul 20, 2014
Location: Mandeville Louisiana
Posts: 2,244
This is where I'am at. Trying to get the rest of my AC parts ordered this week.
__________________
1978 Wagoneer

401/turbo 400 trans. Quadra-Trac BW1339 (with Low) 4" Rusty's lift with 31" Summit Mud Dawgs

Mods:
Fuel Tank, Red Holley Fuel Pump, Razor Grill (profile pic out dated), Rebuilt steering box
Reply With Quote
  #1310
Old 06-13-2020, 11:52 PM
Full Size Jeeper's Avatar
Full Size Jeeper Full Size Jeeper is online now
304 AMC

Join Date: Jul 20, 2014
Location: Mandeville Louisiana
Posts: 2,244
Starting to get a few parts in.
__________________
1978 Wagoneer

401/turbo 400 trans. Quadra-Trac BW1339 (with Low) 4" Rusty's lift with 31" Summit Mud Dawgs

Mods:
Fuel Tank, Red Holley Fuel Pump, Razor Grill (profile pic out dated), Rebuilt steering box
Reply With Quote
  #1311
Old 06-14-2020, 12:09 AM
Full Size Jeeper's Avatar
Full Size Jeeper Full Size Jeeper is online now
304 AMC

Join Date: Jul 20, 2014
Location: Mandeville Louisiana
Posts: 2,244
I don't have the factory Sanden bracket, I have that York to Sanden conversion one and it's not going to just bolt in. The biggest problem is my valve covers are huge compared to the stock ones. The back of the compressor is right on the valve cover, I can't get it back enough to line up with the alternator pulley. At this point, I'am going to cut the slots on bracket longer and see if I can get it lined up to run off the power steering belt. we will see.
__________________
1978 Wagoneer

401/turbo 400 trans. Quadra-Trac BW1339 (with Low) 4" Rusty's lift with 31" Summit Mud Dawgs

Mods:
Fuel Tank, Red Holley Fuel Pump, Razor Grill (profile pic out dated), Rebuilt steering box
Reply With Quote
  #1312
Old 06-14-2020, 12:17 AM
Full Size Jeeper's Avatar
Full Size Jeeper Full Size Jeeper is online now
304 AMC

Join Date: Jul 20, 2014
Location: Mandeville Louisiana
Posts: 2,244
I tried to flip the bracket 180 around and it won't line up with out making longer slots and or re spacing the compressor on the bracket itself. Also the back right bolt can not be put in through the bottom unless you take the York bracket off or cut the hole in the York bracket bigger. I drilled the hole bigger.
__________________
1978 Wagoneer

401/turbo 400 trans. Quadra-Trac BW1339 (with Low) 4" Rusty's lift with 31" Summit Mud Dawgs

Mods:
Fuel Tank, Red Holley Fuel Pump, Razor Grill (profile pic out dated), Rebuilt steering box
Reply With Quote
  #1313
Old 06-14-2020, 01:38 AM
DarkMonohue's Avatar
DarkMonohue DarkMonohue is offline
Shakes hands with danger

Join Date: Jul 01, 2012
Location: PNW
Posts: 1,026
Quote:
Originally Posted by Full Size Jeeper
I don't have the factory Sanden bracket, I have that York to Sanden conversion one and it's not going to just bolt in. The biggest problem is my valve covers are huge compared to the stock ones. The back of the compressor is right on the valve cover, I can't get it back enough to line up with the alternator pulley. At this point, I'am going to cut the slots on bracket longer and see if I can get it lined up to run off the power steering belt. we will see.
Since the root of the problem is that the valve cover is too big, what about having the valve cover modified? Seems like that would correct the issue without having to re-engineer anything. Monkeying with different belt drive setups sounds like an opportunity to open up a whole new can of worms. Just one man's opinion, and worth what you paid for it, but with all the work you've put into this it'd be a shame to take a hinky shortcut when the solution is so simple.

This might not make it any better, but what about finding a factory Sanden compressor bracket?
__________________
'85 J20 Old Man Truck, bought @ 65K miles - not great, but better than walking.
Member, FSJ Prissy Restoration Association
High quality junk here: intro thread and slow build thread

Did you know? Willys is just Willis spelled differently, but pronounced the same. Neither Willy nor his apostrophe are involved.
Reply With Quote
  #1314
Old 06-14-2020, 06:48 AM
Full Size Jeeper's Avatar
Full Size Jeeper Full Size Jeeper is online now
304 AMC

Join Date: Jul 20, 2014
Location: Mandeville Louisiana
Posts: 2,244
Yeah Dark, thanks for your input. I'am thinking the factory bracket won't help due to the fact, the valve cover will still be in the way. I really don't want to cut the valve cover and possibly ruin it. The easiest fix would be to go back to factory valve covers, but I like the way these look.
On some older A/C threads I looked through, I see a different style bracket that bolts to the York bracket. It's cast with four bosses that make the bracket sit up about a half inch higher than the one I have. Might try and put some spacers under my bracket and see if that lifts the compressor high enough to clear the hose fittings.
I'am open to all ideas on this, Thanks.
__________________
1978 Wagoneer

401/turbo 400 trans. Quadra-Trac BW1339 (with Low) 4" Rusty's lift with 31" Summit Mud Dawgs

Mods:
Fuel Tank, Red Holley Fuel Pump, Razor Grill (profile pic out dated), Rebuilt steering box
Reply With Quote
  #1315
Old 06-14-2020, 09:03 AM
cu4whln's Avatar
cu4whln cu4whln is offline
350 Buick

Join Date: May 16, 2008
Location: Canton, Mi USA !
Posts: 1,197
Quote:
Originally Posted by Full Size Jeeper
Sonoraed already made a hard line that comes off the bottom of the condenser to the drier. I did a test fit and it looks good. I sent him a few line drawings, and after a few text, back and forth, he was able to make two more hard lines. I should get them next week.

Nice AC lines!

I wonder if he kept the patterns? Maybe he could offer a few sets... I am redoing my complete AC set up as well.

Very nice build overall btw !
__________________
It's not yours 'til ya bleed on it . . .

1977 "401" 'Da Chief
1979 Chero: "Madness" [Sold]
1985 CJ : Renegade -locked and loaded
2001 XJ : Driver 2016 JK 2 door

'Da Chief here: http://www.ifsja.org/forums/vb/showt...ighlight=chief

Round 2- LT Swap: 'Da Chief:
http://www.ifsja.org/forums/vb/showthread.php?t=188457

"Madness" build here:
http://www.ifsja.org/forums/vb/showthread.php?t=89280
Reply With Quote
  #1316
Old 06-14-2020, 11:25 AM
Full Size Jeeper's Avatar
Full Size Jeeper Full Size Jeeper is online now
304 AMC

Join Date: Jul 20, 2014
Location: Mandeville Louisiana
Posts: 2,244
(I wonder if he kept the patterns? Maybe he could offer a few sets... I am redoing my complete AC set up as well.)

Sonoraed told me he could replicate all the hard lines he made for me, give him a call!!
__________________
1978 Wagoneer

401/turbo 400 trans. Quadra-Trac BW1339 (with Low) 4" Rusty's lift with 31" Summit Mud Dawgs

Mods:
Fuel Tank, Red Holley Fuel Pump, Razor Grill (profile pic out dated), Rebuilt steering box
Reply With Quote
  #1317
Old 06-14-2020, 08:57 PM
Full Size Jeeper's Avatar
Full Size Jeeper Full Size Jeeper is online now
304 AMC

Join Date: Jul 20, 2014
Location: Mandeville Louisiana
Posts: 2,244
Compressor is on. I had to cut the bracket up because of the valve covers I'am running, but it should work. The belts line up really good. Before and after of bracket

__________________
1978 Wagoneer

401/turbo 400 trans. Quadra-Trac BW1339 (with Low) 4" Rusty's lift with 31" Summit Mud Dawgs

Mods:
Fuel Tank, Red Holley Fuel Pump, Razor Grill (profile pic out dated), Rebuilt steering box
Reply With Quote
  #1318
Old 06-14-2020, 09:03 PM
Full Size Jeeper's Avatar
Full Size Jeeper Full Size Jeeper is online now
304 AMC

Join Date: Jul 20, 2014
Location: Mandeville Louisiana
Posts: 2,244
If you look at the pic, the belt is on the outer grove of the alternator and the inner grove of the ac compressor. That is as far back as I can get the compressor to go because of the valve covers. Some won't like it, but it's good enough for who it's for!!!!
__________________
1978 Wagoneer

401/turbo 400 trans. Quadra-Trac BW1339 (with Low) 4" Rusty's lift with 31" Summit Mud Dawgs

Mods:
Fuel Tank, Red Holley Fuel Pump, Razor Grill (profile pic out dated), Rebuilt steering box
Reply With Quote
  #1319
Old 06-14-2020, 09:04 PM
Full Size Jeeper's Avatar
Full Size Jeeper Full Size Jeeper is online now
304 AMC

Join Date: Jul 20, 2014
Location: Mandeville Louisiana
Posts: 2,244
__________________
1978 Wagoneer

401/turbo 400 trans. Quadra-Trac BW1339 (with Low) 4" Rusty's lift with 31" Summit Mud Dawgs

Mods:
Fuel Tank, Red Holley Fuel Pump, Razor Grill (profile pic out dated), Rebuilt steering box
Reply With Quote
  #1320
Old 06-16-2020, 05:23 PM
rang-a-stang's Avatar
rang-a-stang rang-a-stang is offline
Administrator

Join Date: Oct 31, 2016
Location: Camarillo, CA
Posts: 3,442
Quote:
Originally Posted by Full Size Jeeper
If you look at the pic, the belt is on the outer grove of the alternator and the inner grove of the ac compressor. That is as far back as I can get the compressor to go because of the valve covers. Some won't like it, but it's good enough for who it's for!!!!
You should put a serpentine kit on it! That'll fix it real good! I got one I'll sell you for cheap!!!
__________________
79 Cherokee Chief
(Cherokee Build Thread)
11 Nissan Pathfinder Silver Edition 4x4
09 Mazdaspeed3 Grand Touring
Reply With Quote
