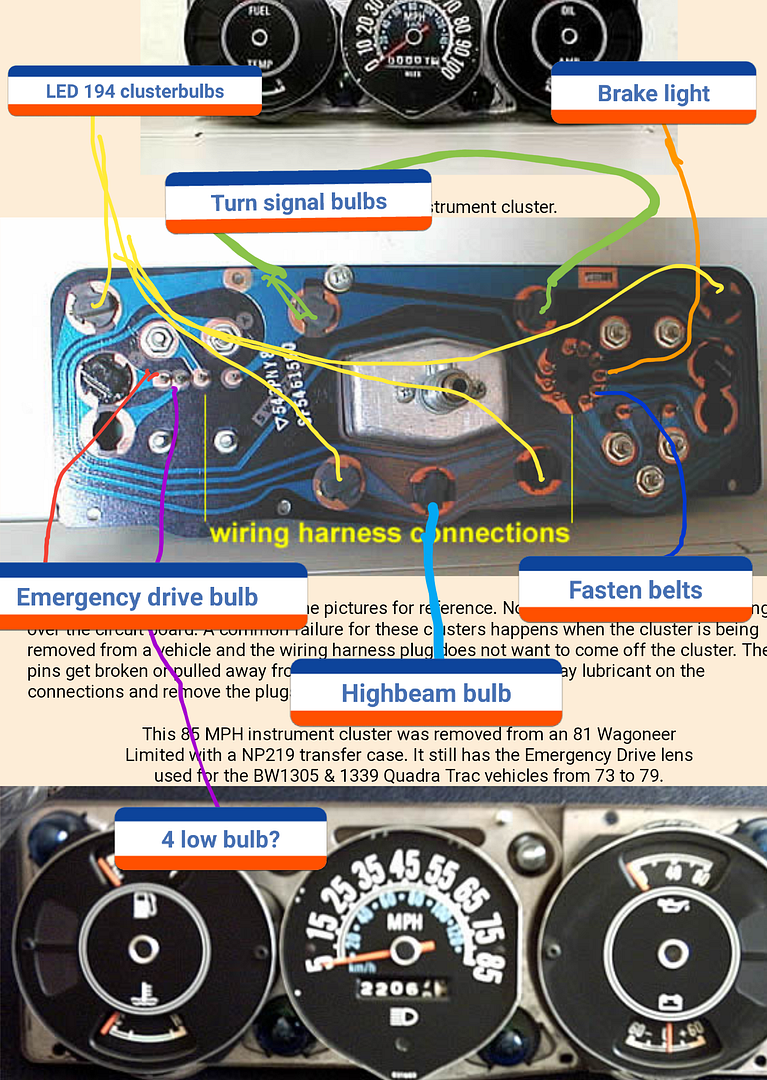

Cluster diagram

Is the labeling correct for "4 low light"? I know emergency drive is on top. I am running wire from ECU of 96 12V ram to this, as the 96 ram had a 4 high and 4 low light. I was gonna tap into emergency drive light for when air lockers are engaged.

__________________
'77 J"30". 12V 6BT, built 48RE, NV241HD, D60, lockers, SOA, rear flip, 4" lift, 39.5 rockers.

http://i1271.photobucket.com/albums/...psee77232d.jpg

Last edited by HerrKooled : 08-15-2019 at 11:21 PM.
Reply With Quote
  #2
Old 08-16-2019, 10:56 AM
rang-a-stang's Avatar
rang-a-stang rang-a-stang is online now
360 AMC

Join Date: Oct 31, 2016
Location: Camarillo, CA
Posts: 2,663
If this is in a 77, there is no 4 Low light. The hole you have labeled as 4 Low was just painted out and no light installed. I used that hole for my Check Engine light when I did my EFI install.

If you want to use that hole, you have to remove the little red plastic lens and remove the paint. I used brake fluid knowing that it would gently eat the paint and hopefully not damage the red plastic lens.
__________________
79 Cherokee Chief, barely runs
(Cherokee Build Thread)
11 Nissan Pathfinder Silver Edition 4x4
09 Mazdaspeed3 Grand Touring

Last edited by rang-a-stang : 08-21-2019 at 10:45 AM.
Reply With Quote
  #3
Old 08-16-2019, 04:32 PM
HerrKooled's Avatar
HerrKooled HerrKooled is offline
258 I6

Join Date: Aug 18, 2010
Location: northern wilderness
Posts: 386
Quote:
Originally Posted by rang-a-stang
If this is in a 77, there is no 4 Low light. The hole you have labeled as 4 Low was just painted out and no light installed. I used that hole for my Check Engine light when I did my EFI install.

If you want to use that hole, you have to remove the little red plastic lens and remove the paint. I used paint brake fluid knowing that it would gently eat the paint and hopefully not damage the red plastic lens.

Awesome, thank you. I have the glove box out and notice the factory still installed a turn socket with bulb in that panel and the emergency drive, which is odd as it's a waste of parts. Do I have the emergency drive lens or is that painted over as well
__________________
'77 J"30". 12V 6BT, built 48RE, NV241HD, D60, lockers, SOA, rear flip, 4" lift, 39.5 rockers.

http://i1271.photobucket.com/albums/...psee77232d.jpg
Reply With Quote
  #4
Old 08-16-2019, 04:41 PM
HerrKooled's Avatar
HerrKooled HerrKooled is offline
258 I6

Join Date: Aug 18, 2010
Location: northern wilderness
Posts: 386
Was there any letters on the lens when you removed the paint? And is the emergency drive lens painted over as Well? I may do what you did as I'm running the ECU from 96 ram. I might retrofit an amber lens with a little engine decal or stencil on it and connect a wire directly to that post the purple line goes to, to pin 32 on the ECU which is CEL. Or I'll use it as a low fuel light.
__________________
'77 J"30". 12V 6BT, built 48RE, NV241HD, D60, lockers, SOA, rear flip, 4" lift, 39.5 rockers.

http://i1271.photobucket.com/albums/...psee77232d.jpg
Reply With Quote
  #5
Old 08-16-2019, 06:11 PM
babywag's Avatar
babywag babywag is online now
out of order

Join Date: Jun 08, 2005
Location: Land of froot loops and cukcoo-nuts, CA
Posts: 9,377
some clusters have unused(lettered) clusters, some do not.
shine a light through holes and if yours does it'll tell you.
even if it is not easy-ish to change.
__________________
Tony
'88 GW (aka Babywag) and '90 GW (aka JUNKbucket) both fuel injected
1994 Caprice wagon
Reply With Quote
  #6
Old 08-16-2019, 06:32 PM
SJTD SJTD is offline
350 Buick

Join Date: Apr 26, 2012
Location: Lompoc and Sunland, CA
Posts: 1,270
What year?

My '84 has both lenses with nothing blocking them out but neither were used.
It did have a bulb and wiring in the 4Wheel hole but it wasn't used on the T/C I had.

Just found this out recently that my T/C didn't use the light. Seems it was used in '85.
__________________
Sic friatur crustulum

'84 GW with Nissan SD33T, early Chev NV4500, 300, narrowed Ford reverse 44, narrowed Ford 60, SOA/reversed shackle in fornt, lowered mount/flipped shackle in rear.
Reply With Quote
  #7
Old 08-21-2019, 04:27 AM
HerrKooled's Avatar
HerrKooled HerrKooled is offline
258 I6

Join Date: Aug 18, 2010
Location: northern wilderness
Posts: 386
Well, it works now. See avatar.
__________________
'77 J"30". 12V 6BT, built 48RE, NV241HD, D60, lockers, SOA, rear flip, 4" lift, 39.5 rockers.

http://i1271.photobucket.com/albums/...psee77232d.jpg
Reply With Quote
  #8
Old 08-21-2019, 10:46 AM
rang-a-stang's Avatar
rang-a-stang rang-a-stang is online now
360 AMC

Join Date: Oct 31, 2016
Location: Camarillo, CA
Posts: 2,663
Quote:
Originally Posted by HerrKooled
Well, it works now. See avatar.
SERIOUS?!?!? SUPER AWESOME!!! hahaha!!!!
